Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the driver airbag module.
[Without paddle shift]
- Putting in a flat tool (Ø5mm) into the guide hole and then press the spring.
Fig 1: Putting In Flat Tool Into Guide Hole (Without Paddle Shift)
Courtesy of HYUNDAI MOTOR AMERICA

[With paddle shift]
- Putting in a flat tool (Ø5mm) into the guide hole (A) and then rotate it.
Fig 2: Putting In Flat Tool Into Guide Hole (With Paddle Shift)
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:

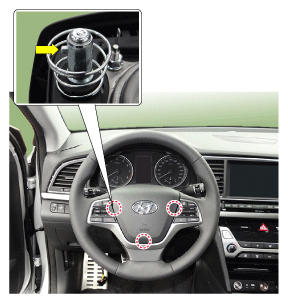

- After inserting the tool, press the DAB fixed pin in the direction of the arrow as displayed below.
Fig 3: Pressing DAB Fixed Pin
Courtesy of HYUNDAI MOTOR AMERICA

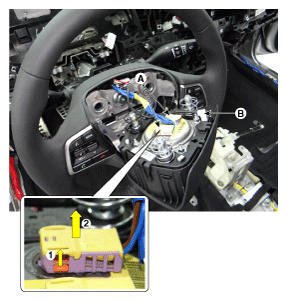

Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).

Fig 4: Disconnecting Driver Airbag Module Connector And Horn Connector
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Using a screwdriver or remover, separate the steering column shroud upper panel (A) from the steering column shroud lower panel.

Fig 5: Separating Steering Column Shroud Upper Panel From Steering Column Shroud Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering column shroud lower panel (A) after loosening the screws.

Fig 6: Removing Steering Column Shroud Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA

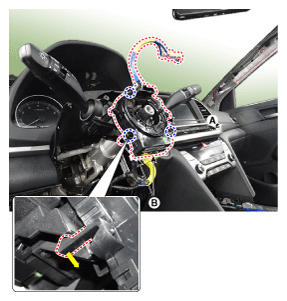

Remove the clock spring (A) after disconnecting the clock spring connectors (B).

Fig 7: Removing Clock Spring
Courtesy of HYUNDAI MOTOR AMERICA
