OCS Reset procedure

You should perform OCS Reset procedure after service or replacement about all part of the passenger seat. (Not included full seat assembly)

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF", select Airbag system and "Body Sensor Reset" mode.

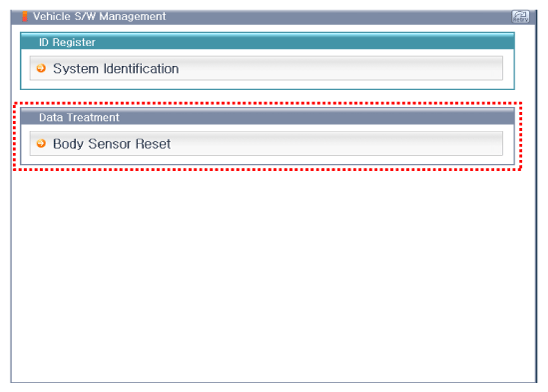

   Fig 1: Screen Display - Body Sensor Reset

   Courtesy of HYUNDAI MOTOR AMERICA
3. The GDS will show the two OCS Reset function steps.
   1. Erase OCS diagnostic codes.
   2. OCS initialization.

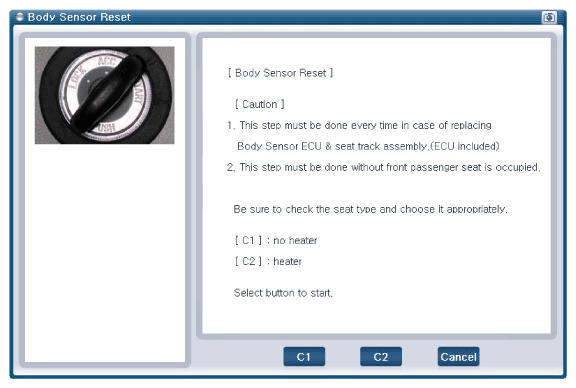

      Fig 2: Screen Display - Body Sensor Reset

      Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:

      • This Step must be done during front passenger seat empty.
4. Select product configuration.
   1. C1: No heater
   2. C2: Heater

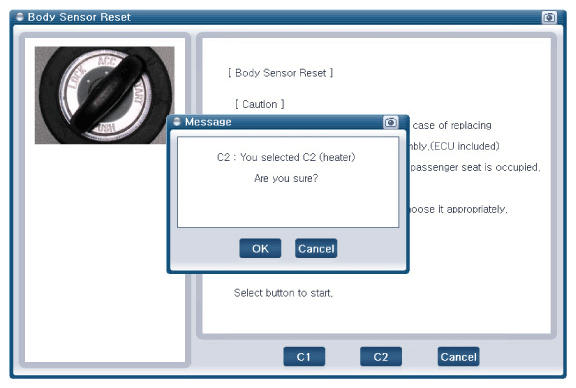

      Fig 3: Screen Display - Select Product Configuration

      Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:

      • Before the starting the OCS Rest process, cross check seat correct configuration with actual vehicle.
      • If you see the center console, you can find different buttons per each different seat configuration type. Refer to (Fig 4).

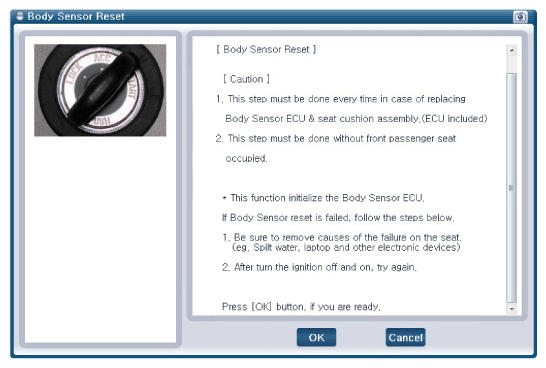

      Fig 4: Screen Display - OCS Rest Process

      Courtesy of HYUNDAI MOTOR AMERICA
5. The OCS initialization procedure will be performed.

   C1: No Heater Type Reset

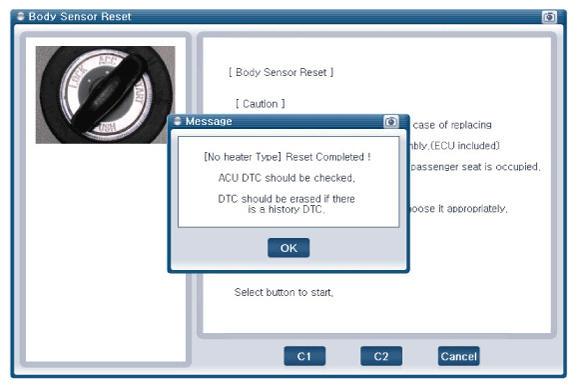

   Fig 5: Screen Display - C1-No Heater Type Reset (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 6: Screen Display - C1-No Heater Type Reset (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

   C2: Heater Type Reset (Including Cooling Seat)

   Fig 7: Screen Display - C2-Heater Type Reset (Including Cooling Seat; 1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 8: Screen Display - C2-Heater Type Reset (Including Cooling Seat; 2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
   CAUTION:

   • Erase the SRSCM diagnostic codes after completing the OCS reset.

   DTC Code	Code Name	Description
   B176300	ECU Defect	Reset (Calibration setting) is not completed ECU is damaged from physical stress
   B176400	MAT Defect	Mat and ECU are not connected. Mat is damaged from physical stress.
   B17672F	Algo cut-off	Too much humidity.
   B111117	IGN voltage high	IGN voltage high.
   B111216	IGN voltage low	IGN voltage low.
   B160388	CAN bus off	CAN Bus is not working.
   B169787	ACU communication error	CAN Bus is not working. ACU is not working.
