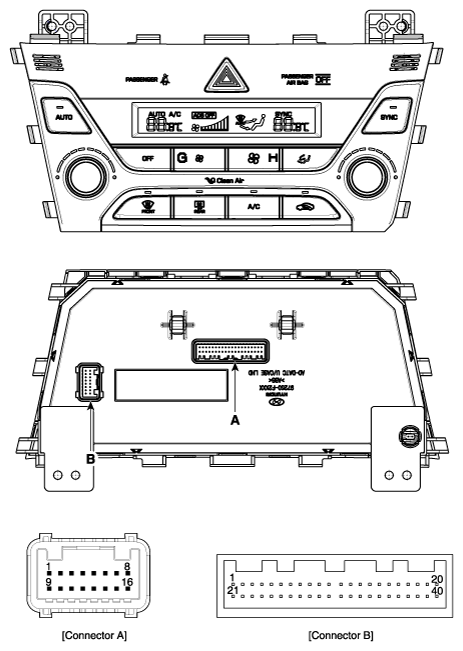

Components And Components Location: Components
WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HYUNDAI MOTOR AMERICA
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| A |
1 |
Battery (+) |
A |
21 |
IGN1 |
| 2 |
IGN2 |
22 |
ILL+ (TAIL) |
| 3 |
ISG B+ |
23 |
Sensor ground REF (+5V) |
| 4 |
Mode control actuator (Vent) |
24 |
C_CAN High |
| 5 |
Mode control actuator (Def) |
25 |
C_CAN Low |
| 6 |
Mode control actuator (Feedback) |
26 |
HTD (Rear defog indicator) |
| 7 |
Intake actuator (Fresh) |
27 |
- |
| 8 |
Intake actuator (Recirculation) |
28 |
- |
| 9 |
Intake actuator (Feedback) |
29 |
Passenger's temperature control actuator (Cool) |
| 10 |
Defogging actuator (On) |
30 |
Passenger's temperature control actuator (Warm) |
| 11 |
Defogging actuator (Off) |
31 |
Passenger's temperature control actuator (Feedback) |
| 12 |
Defogging actuator (Feedback) |
32 |
PTC Relay 2 |
| 13 |
Rear defog switch |
33 |
PTC Relay 3 |
| 14 |
Hazard switch |
34 |
PTC on signal |
| 15 |
Driver's temperature control actuator (Cool) |
35 |
Detent out (-) |
| 16 |
Driver's temperature control actuator (Warm) |
36 |
- |
| 17 |
Driver's temperature control actuator (Feedback) |
37 |
ECV + |
| 18 |
- |
38 |
ECV - (Ground) |
| 19 |
Sensor ground |
39 |
ILL- (RHEO) |
| 20 |
Ground |
40 |
Ground |
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| B |
1 |
Blower motor (+) |
B |
9 |
PAB IGN1 |
| 2 |
FET Drain (Feedback) |
10 |
Clean signal |
| 3 |
FET (Gate) |
11 |
Ionizer diagnosis |
| 4 |
SBR |
12 |
AMB sensor (+) |
| 5 |
Rear SBR (LH) |
13 |
EVAP sensor (+) |
| 6 |
Rear SBR (Center) |
14 |
Auto defogging sensor signal |
| 7 |
Rear SBR (RH) |
15 |
Photo sensor (-)_LH |
| 8 |
PAB Off signal |
16 |
Photo sensor (-)_RH |
