Block Diagram

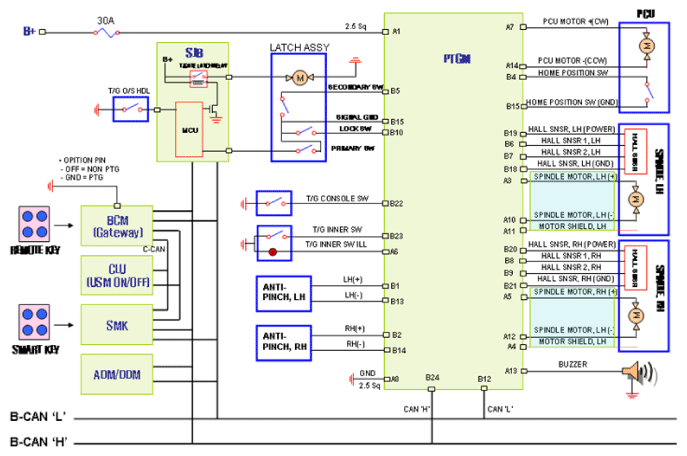

Fig 1: Power Liftgate Module Block Diagram
G12054755Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Power Liftgate Module Connector Terminals
G12054756Courtesy of HYUNDAI MOTOR AMERICA
