Components Location

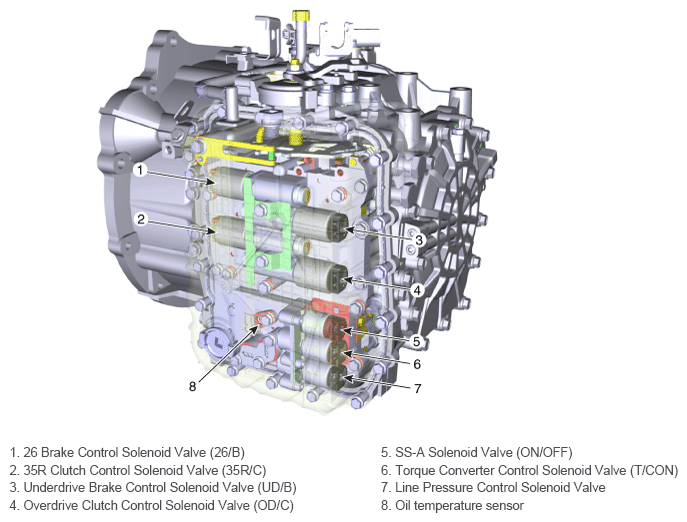

Fig 1: Locating Line Pressure Control Solenoid Valve Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
