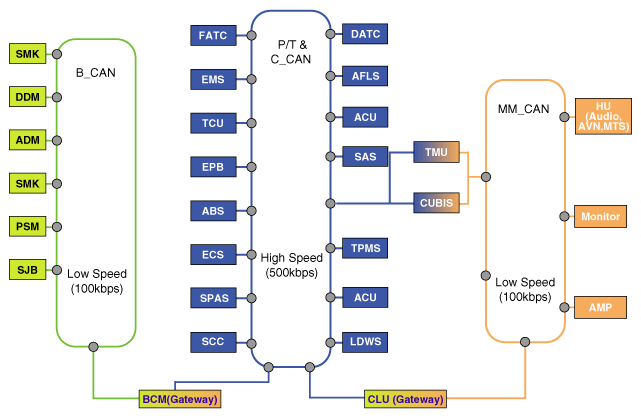

Communication Network Diagram
ABBREVIATION IDENTIFICATION
| Abbreviation | Explanation |
|---|---|
| C_CAN | Chassis Controller Area Network |
| B_CAN | Body Controller Area Network |
| MM_CAN | Multi media Controller Area Network |
| SMK | Smart Key ECU |
| DDM | Driver Door Module |
| ADM | Assist Door Module |
| PSM | Power Seat Module |
| SJB | Smart Junction Box |
| ESC | Electronic Stability Control |
| SPAS | Smart Parking Assist System |
| SWRC | Steering Wheel Remote Controller |
| PCU | Power-train Control Unit |
| ECU | Engine Control Unit |
| TCU | Transmission Control Unit |
| EPB | Electronic Parking Brake |
| ABS | Anti-lock Brake System |
| BCM | Body Control Module |
| SCC | Smart Cruise Control |
| DATC | Dual Automatic Temp Control |
| MDPS | Motor Driven Power Steering |
| SAS | Steering Angle Sensor |
| TPMS | Tire Pressure Monitoring System |
| ACU | Airbag Control Unit |
| CLU | Cluster |
| HU | Head Unit (Audio, AVN, MTS) |
