Circuit Diagram

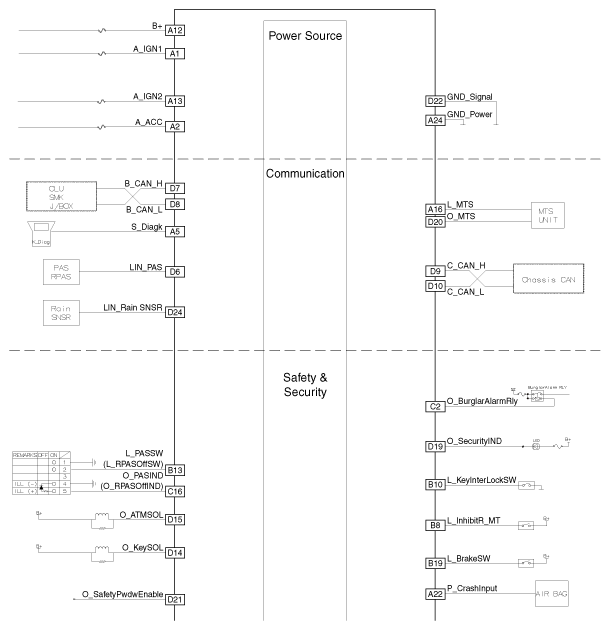

Fig 1: BCM (Body Control Module) Diagram (1 Of 3)
G12035959Courtesy of HYUNDAI MOTOR AMERICA

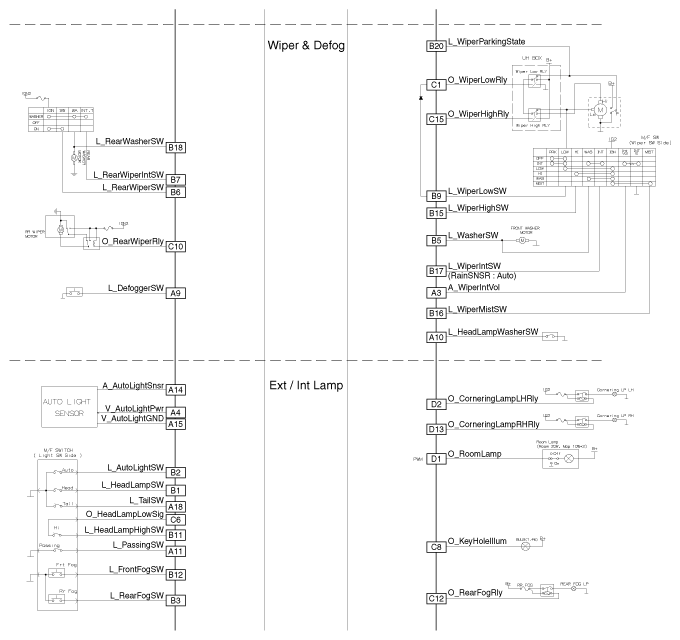

Fig 2: BCM (Body Control Module) Diagram (2 Of 3)
G12035960Courtesy of HYUNDAI MOTOR AMERICA

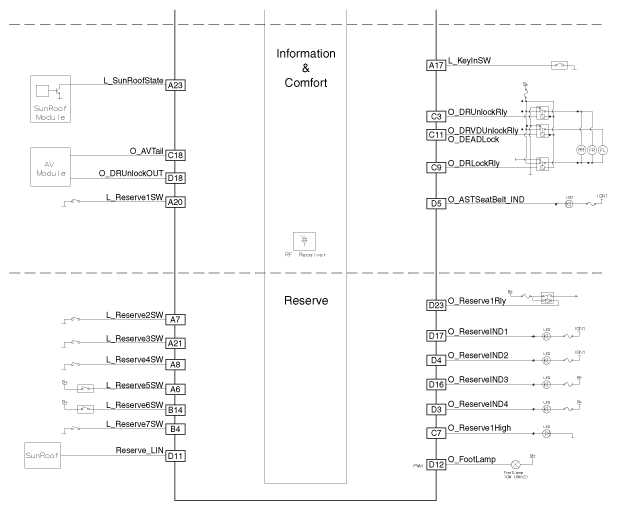

Fig 3: BCM (Body Control Module) Diagram (3 Of 3)
G12035961Courtesy of HYUNDAI MOTOR AMERICA
