Mode Change (Power Liftgate System)
- After replacing with a new power liftgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power liftgate mode change.

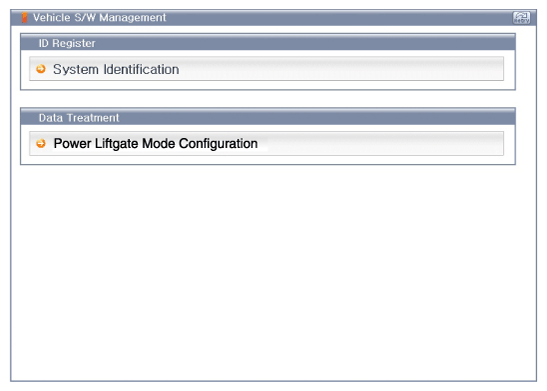

- After connecting the GDS, select the "Power Liftgate Mode Change" procedure.

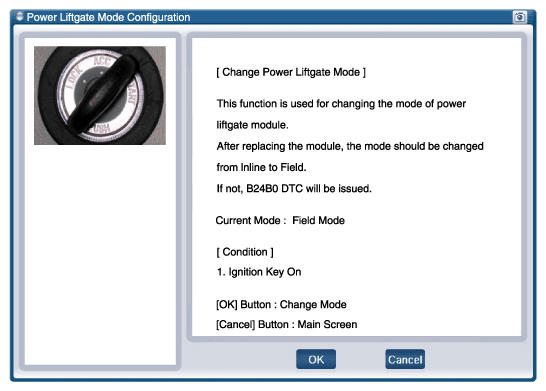

- Perform the liftgate mode change procedure according to displayed messages on GDS.CAUTION:
- If power liftgate system is operated with factory mode, it makes the abnormal warning sound.
