Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

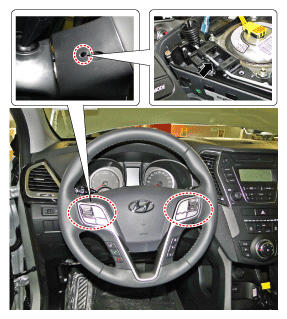

  2. Remove the driver airbag module by putting in a flat tool (Ø5mm) into the guide hole and then press the omega spring.
    G12033194Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).
    G12033195Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud.

    (Refer to  MDPS ASSEMBLY  )

    G12033196Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
G12033197Courtesy of HYUNDAI MOTOR AMERICA
