Components Location

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

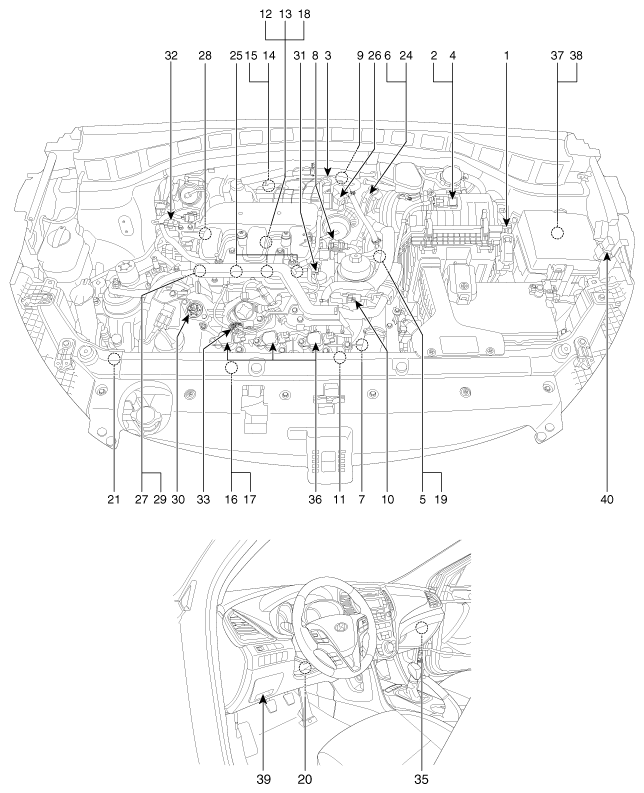

G12033962Courtesy of HYUNDAI MOTOR AMERICA

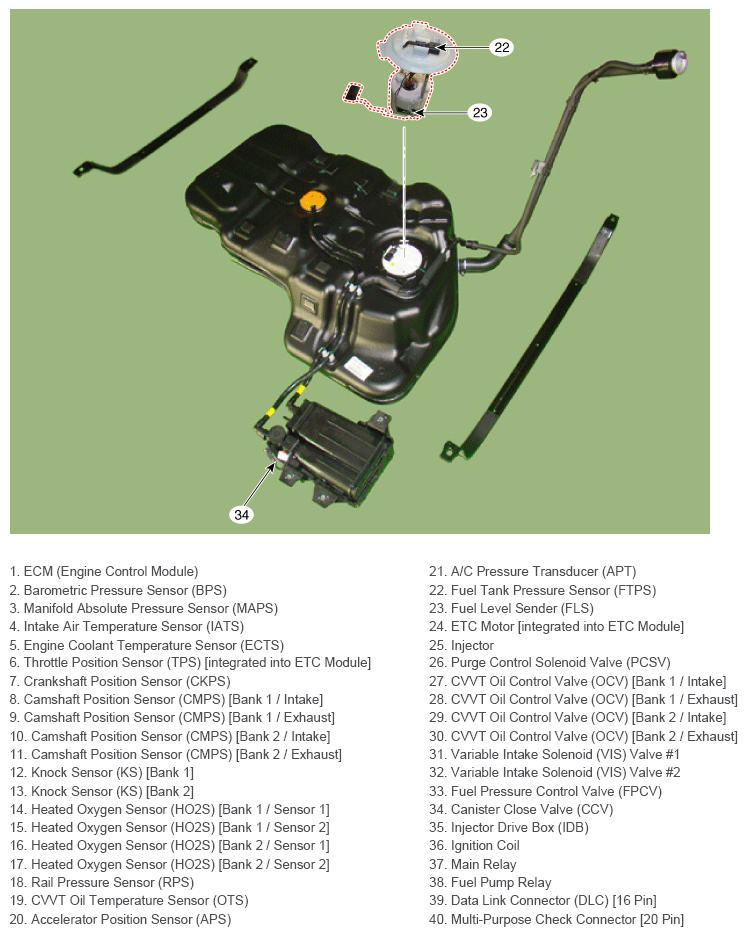

G12033963Courtesy of HYUNDAI MOTOR AMERICA
G12033964Courtesy of HYUNDAI MOTOR AMERICA

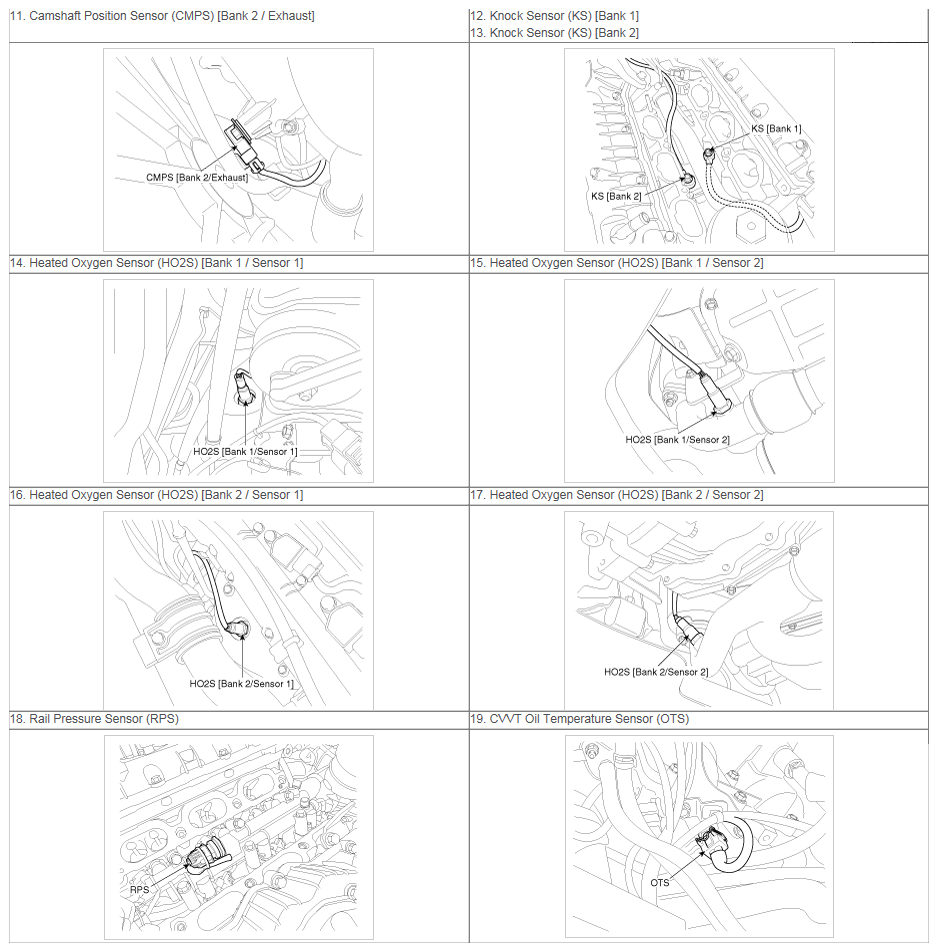

G12033965Courtesy of HYUNDAI MOTOR AMERICA

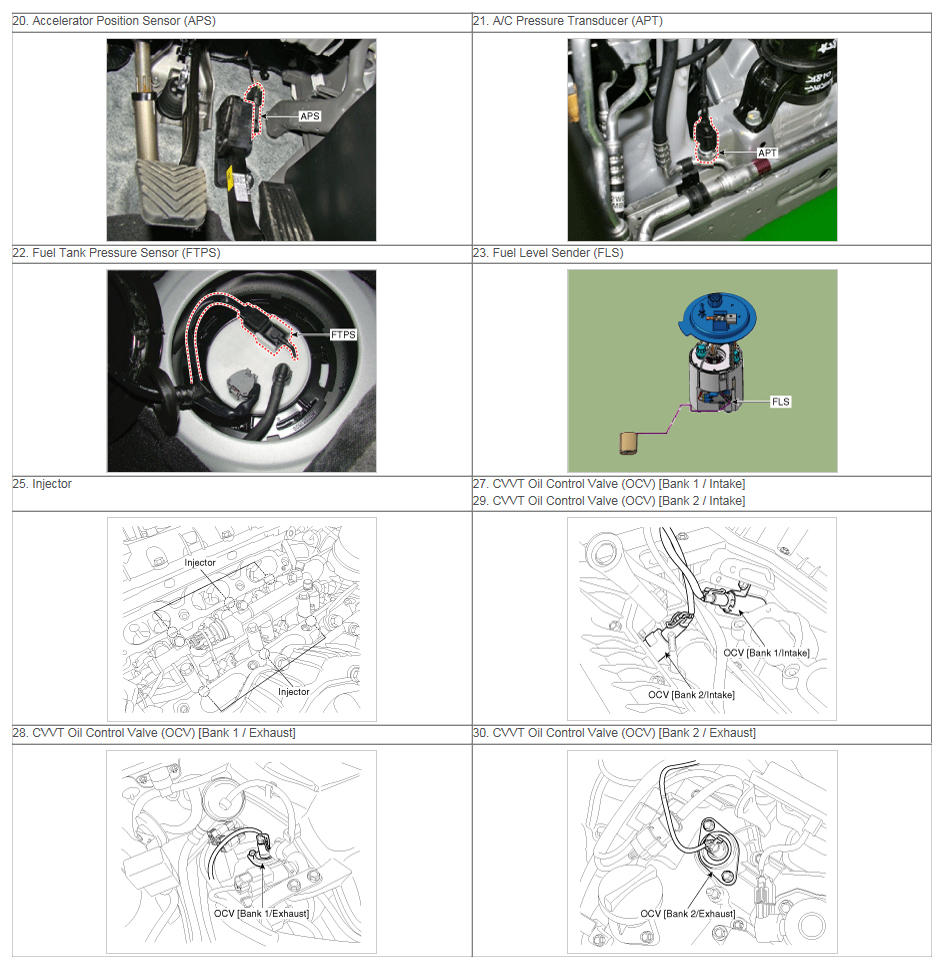

G12033966Courtesy of HYUNDAI MOTOR AMERICA

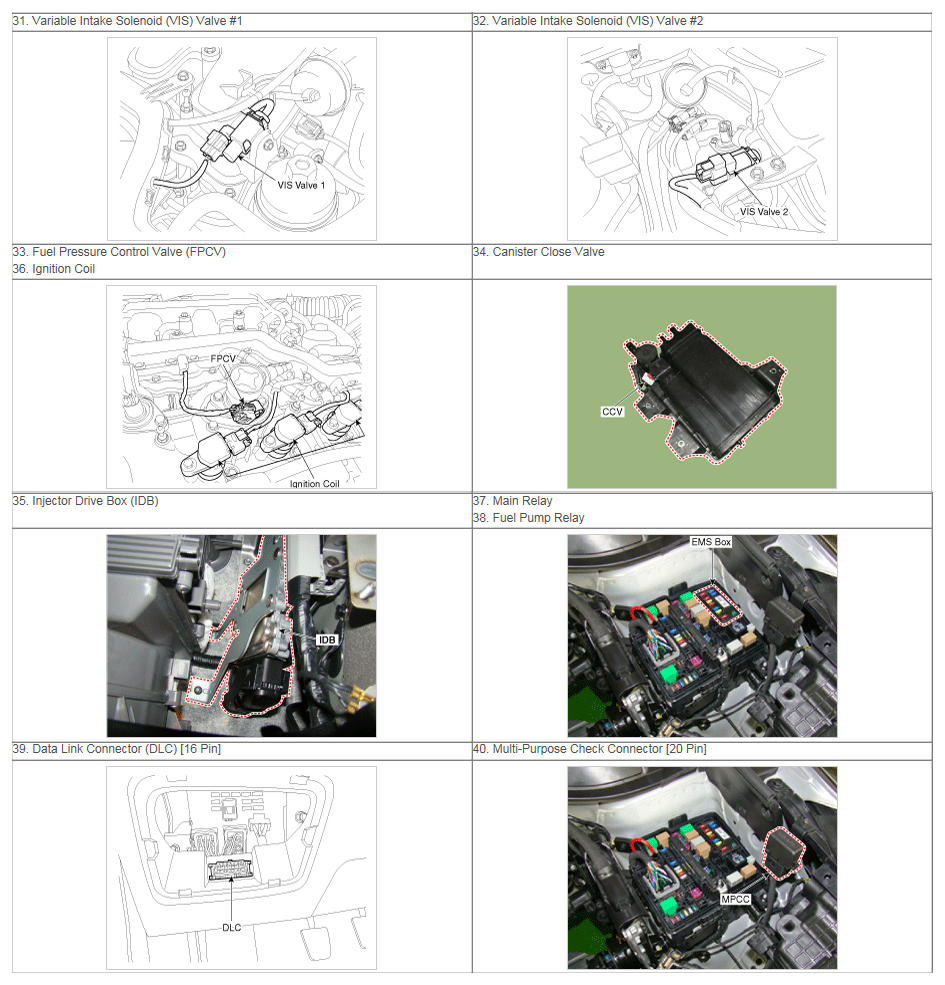

G12033967Courtesy of HYUNDAI MOTOR AMERICA
