Hyundai
>>
2018
>>
Sonata Hybrid Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

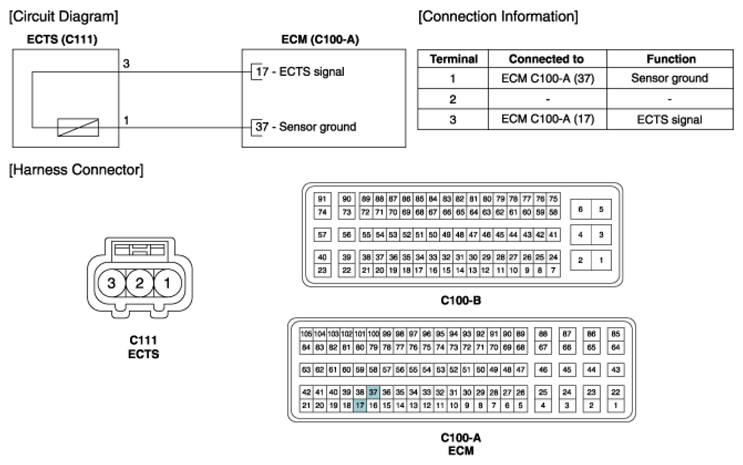

Circuit Diagram
