Assist Power Window Switch
>>
[Assist Power Window Module (IMS, Safety)]
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

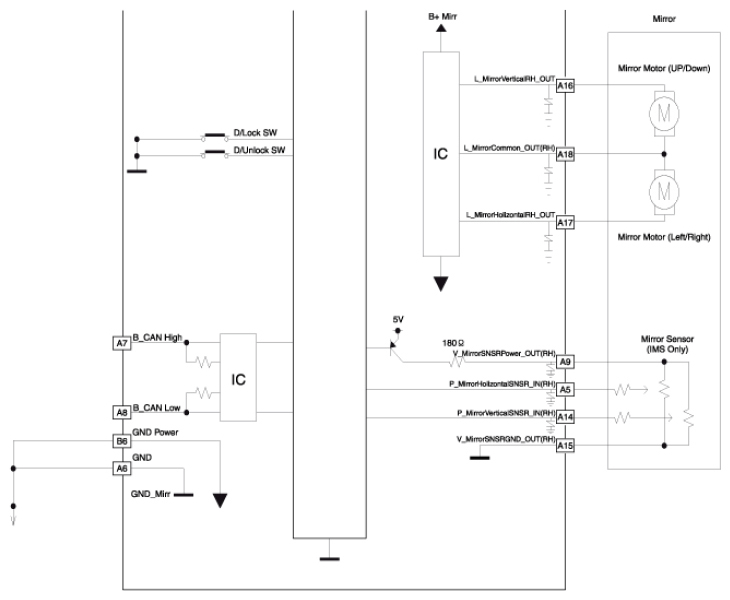

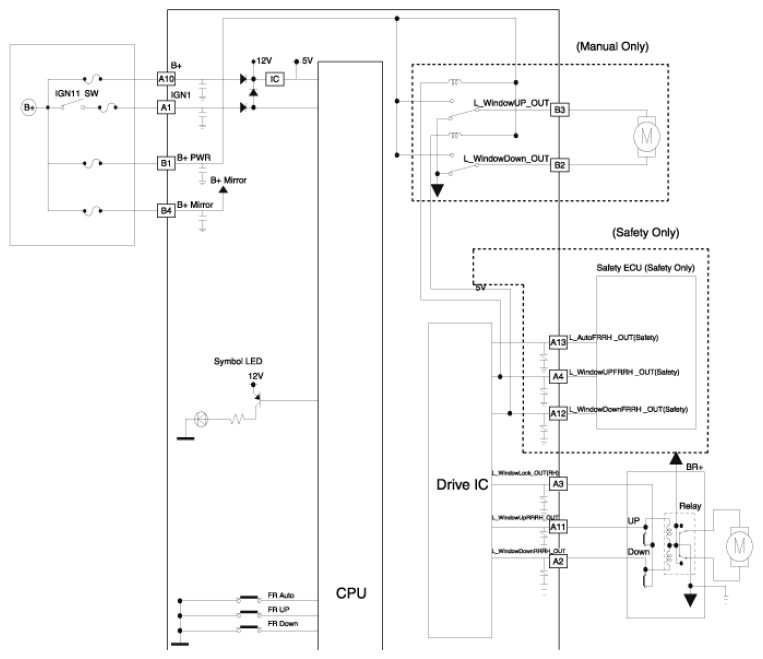

[Assist Power Window Module (IMS, Safety)]
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
