Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF, and then remove battery (-) cable.

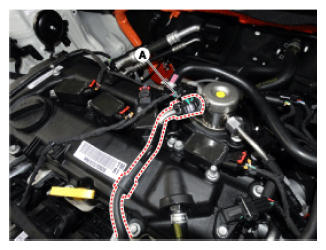

Disconnect the fuel feed tube quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

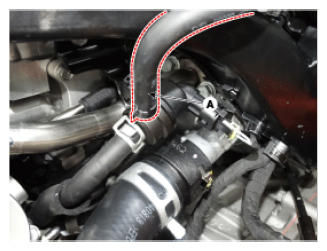

Disconnect the vapor hose (A) which is connected from the PCSV.

Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the fuel tank.
(Refer to "FUEL TANK ")

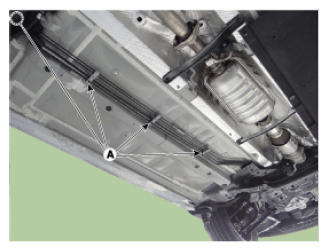

Open the vapor tube and fuel feed line fixing clip (A) to using driver.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel line from the bottom of the vehicle.

Courtesy of HYUNDAI MOTOR AMERICA
