Repair Procedures: Installation

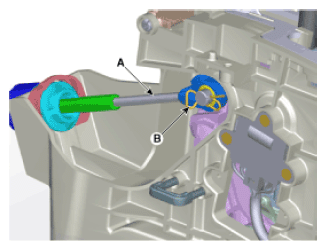

Install the snap pin (B).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

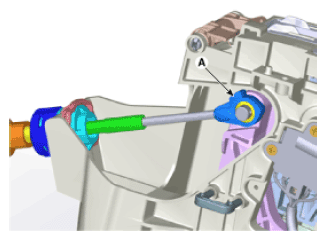

Lug (A) must assemble upward.

Courtesy of HYUNDAI MOTOR AMERICA

Install the snap pin after placing the shift lever in the N position.

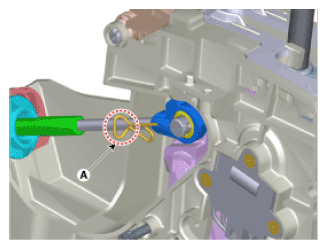

When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

Courtesy of HYUNDAI MOTOR AMERICA

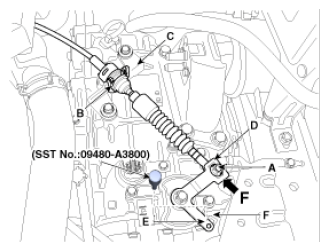

Install the shift cable (B) in the cable bracket (C).
Align the hole (E) in the manual control lever with the "N" position hole (F) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No: 09480-A3800).
Lightly tighten the nut (A) after connected the shift cable (B) in the manual control lever (D).
Push shift cable (B) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (A) to the specified torque.
Tightening torque

9.8 - 14.7 N.m (1.0 -1.5 kgf.m, 7.2 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
Install the airbag module.
(Refer to "AIRBAG MODULE ")

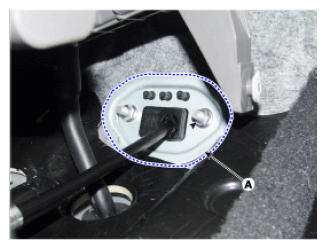

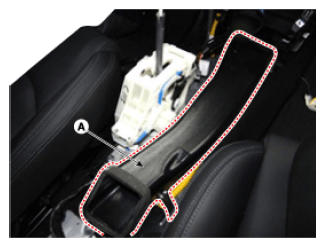

Install the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Install the air cleaner assembly.
(Refer to "AIR CLEANER ")
Install the battery and battery tray.
(Refer to "AUXILIARY 12V BATTERY ")
Install the air duct.
(Refer to "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
