Repair Procedures: Removal

  1. Remove the valve body assembly.

    (Refer to Valve Body System - "VALVE BODY ")

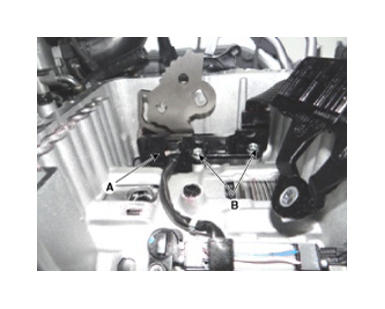

  2. Disconnect the input & output speed sensor connector (A).
  3. Loosen the main connector bolt (B).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    G12611964Courtesy of HYUNDAI MOTOR AMERICA

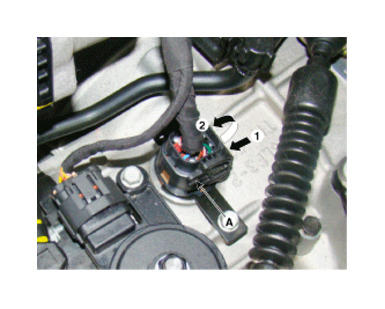

  4. Disconnect the solenoid valve connector (A).
    1. Press the lock
    2. Pull up lever
    G12611965Courtesy of HYUNDAI MOTOR AMERICA

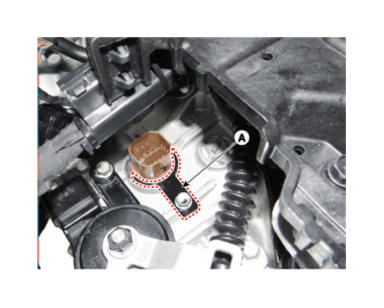

  5. Remove the solenoid valve connector mounting clip (A).
    G12611966Courtesy of HYUNDAI MOTOR AMERICA

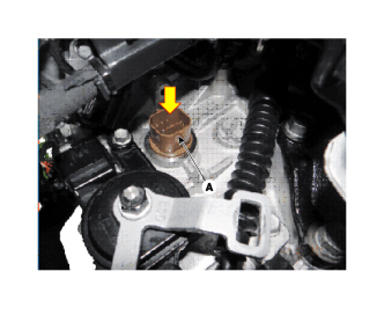

  6. Remove the solenoid valve connector (A) by pushing down from the transaxle.
    G12611967Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the O-Ring (A) before reinstalling solenoid valve connector.
    G12611968Courtesy of HYUNDAI MOTOR AMERICA
