Transaxle Oil Temperature Sensor: Specifications

• Type: Negative Thermal Coefficient Type

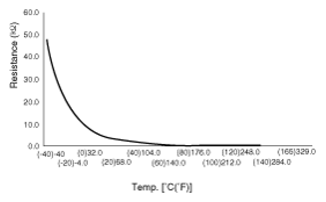

Temp. [(°C) °F]	Resistance (kΩ)
(-40) -40	48.1
(-20) -4.0	15.6
(0) 32.0	5.88
(20) 68.0	2.51
(40) 104.0	1.19
(60) 140.0	0.61
(80) 176.0	0.32
(100) 212.0	0.18
(120) 248.0	0.11
(140) 284.0	0.07
(160) 320.0	0.04

Courtesy of HYUNDAI MOTOR AMERICA
