Components Location

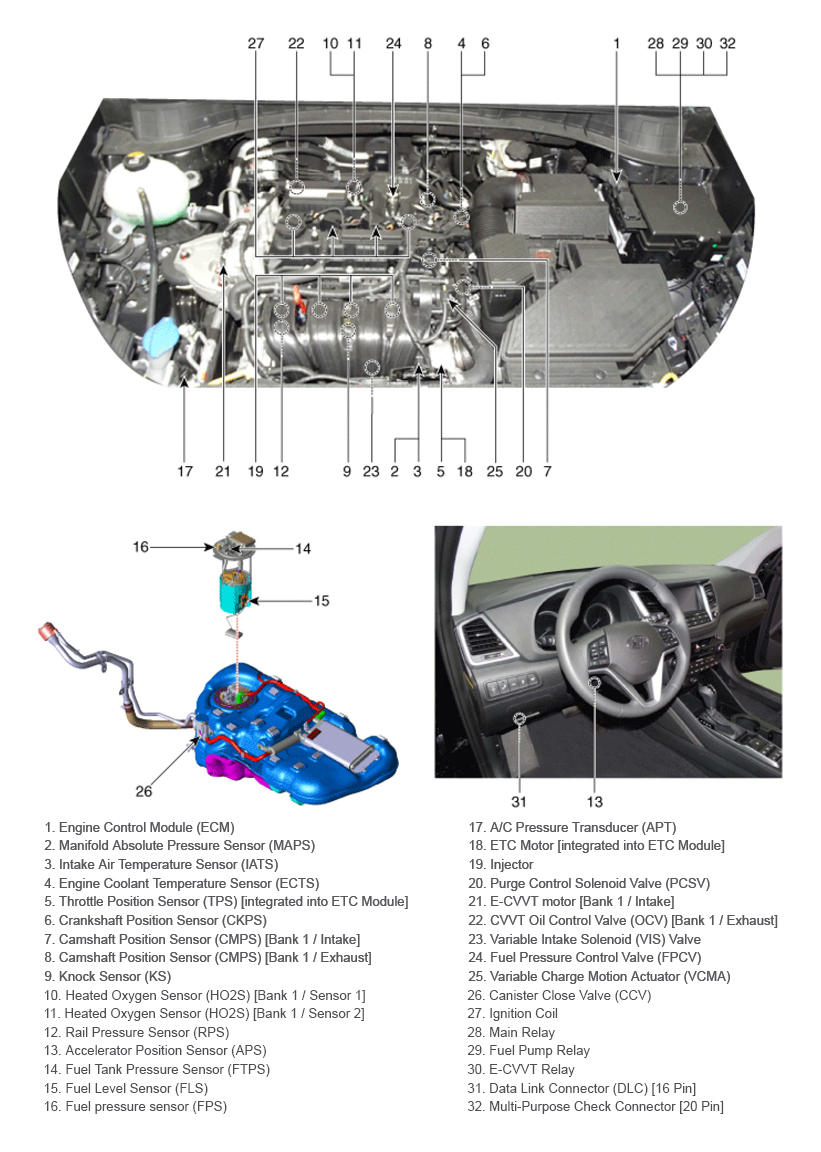

G12612694Courtesy of HYUNDAI MOTOR AMERICA

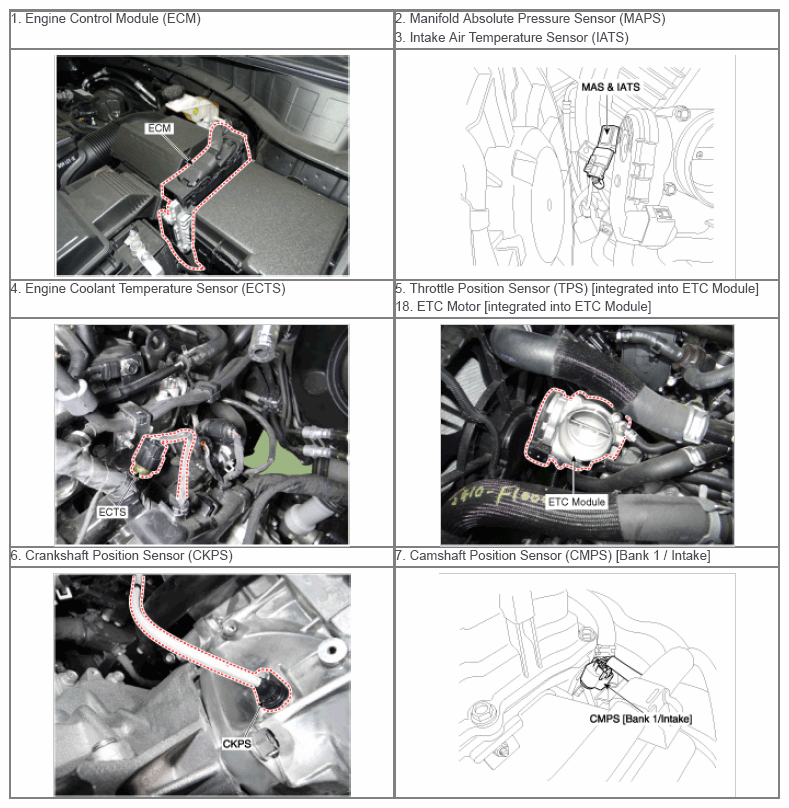

G12612695Courtesy of HYUNDAI MOTOR AMERICA

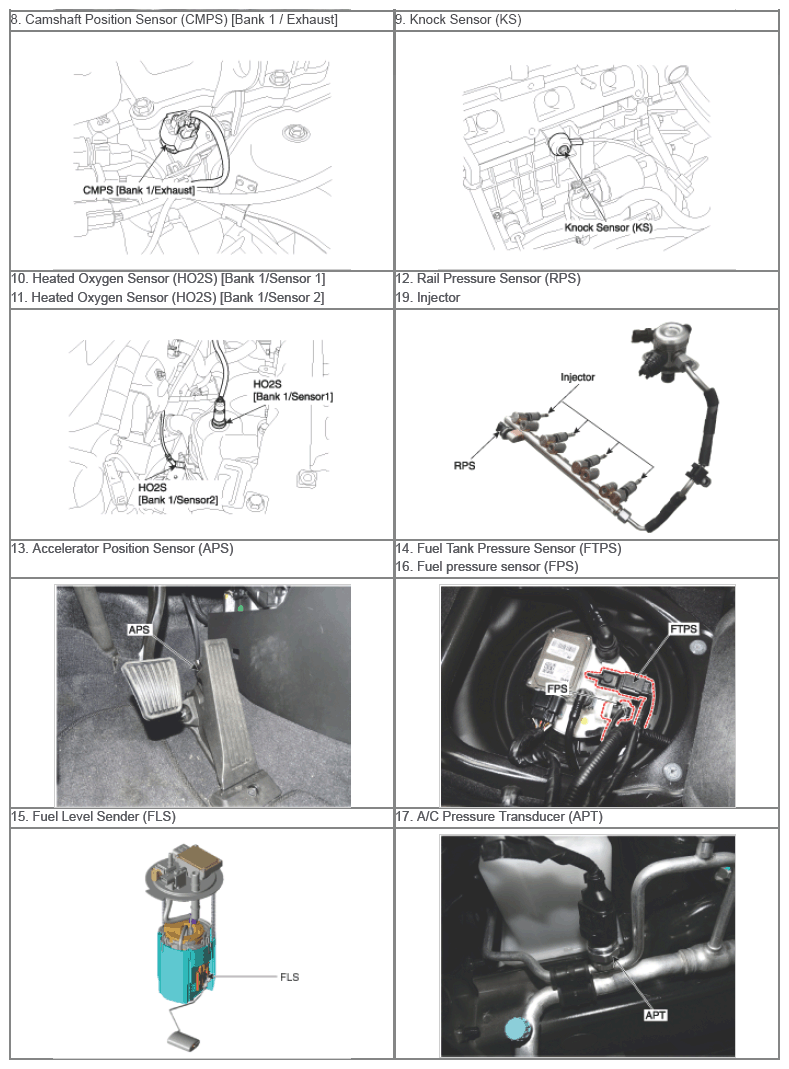

G12612696Courtesy of HYUNDAI MOTOR AMERICA

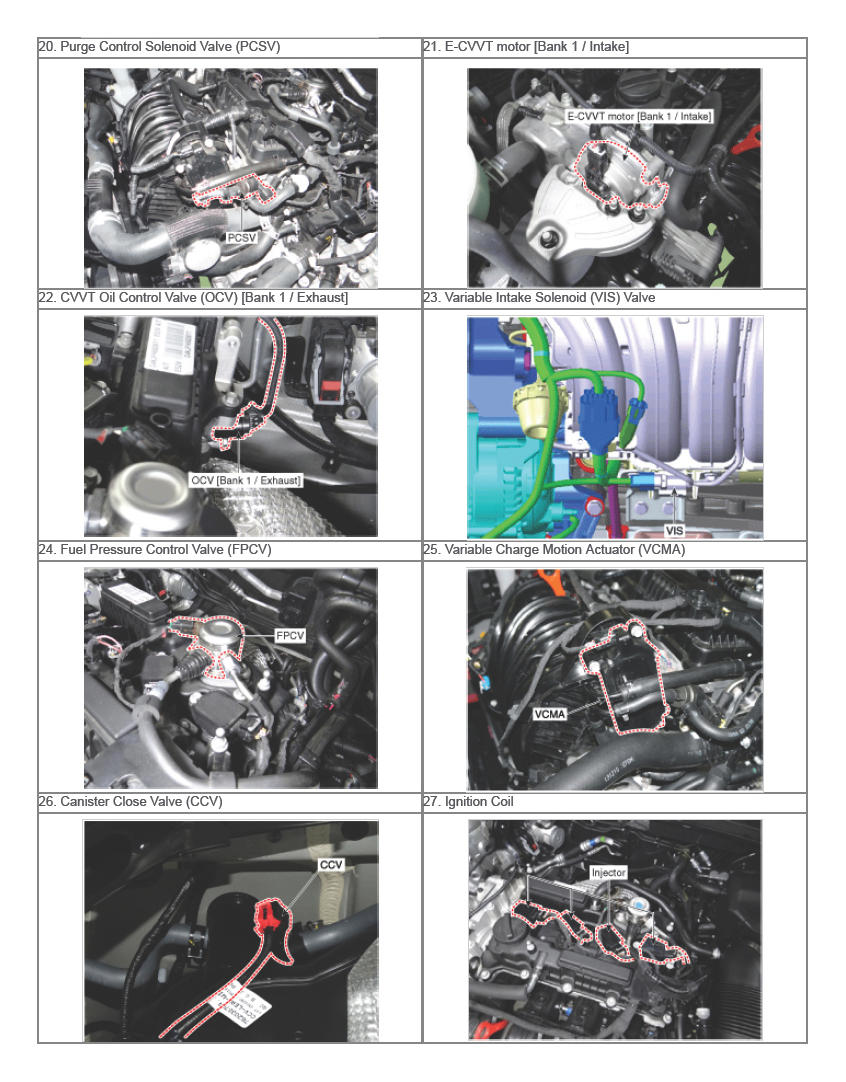

G12612697Courtesy of HYUNDAI MOTOR AMERICA

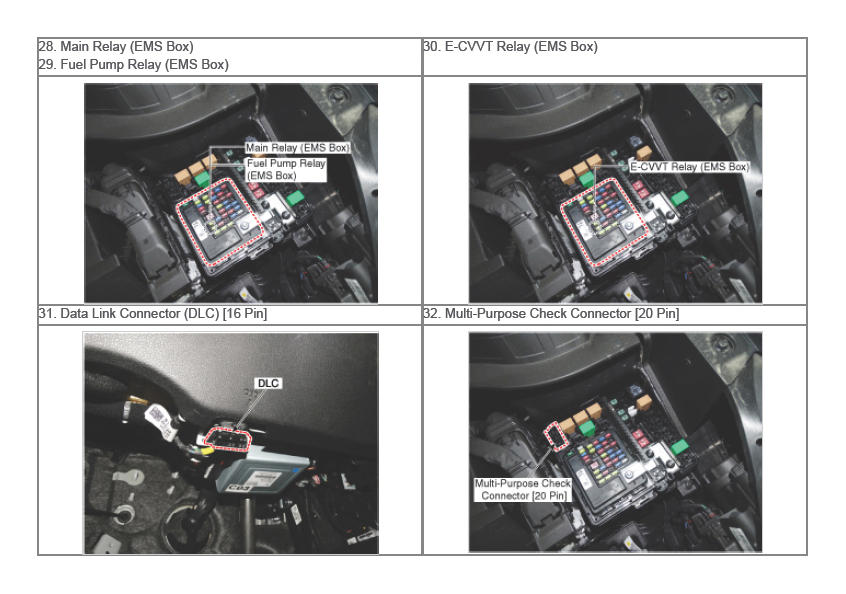

G12612698Courtesy of HYUNDAI MOTOR AMERICA
