Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the assist door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

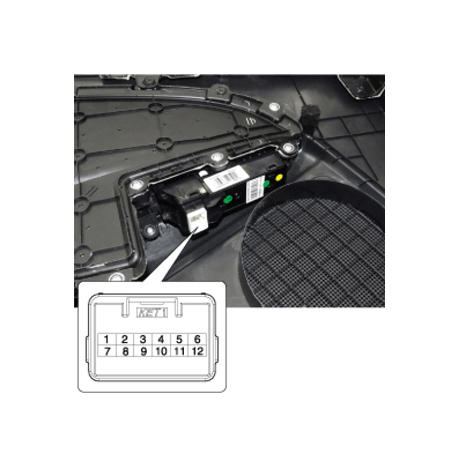

  3. Disconnect the power mirror switch connector from the door trim.
    G12614776Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown below.

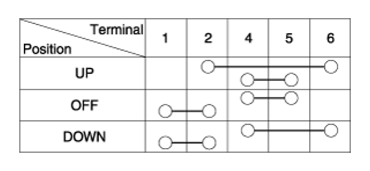

    [Power Window Switch Inspection]

    G12614777Courtesy of HYUNDAI MOTOR AMERICA

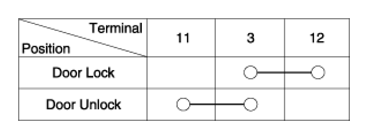

    [Power Door Lock Switch Inspection]

    G12614778Courtesy of HYUNDAI MOTOR AMERICA
