Driver Power Window Switch
- Disconnect the negative (-) battery terminal.
- Remove the driver door trim.
(Refer to Body - "FRONT DOOR TRIM ")

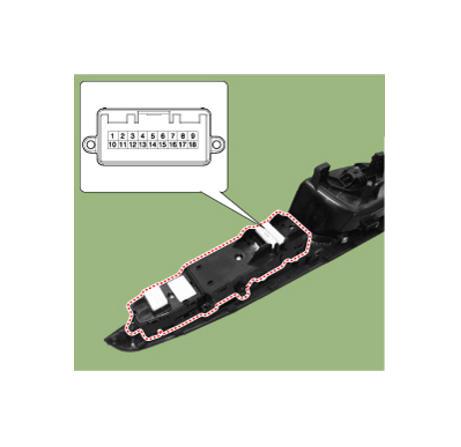

- Disconnect the power mirror switch connector from the door trim.
- Check for continuity between the terminals in each switch position as shown below.

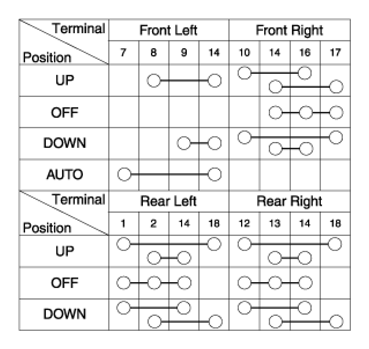

[Power Window Switch Inspection]

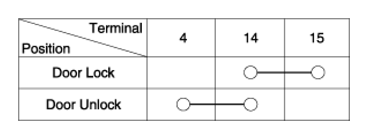

[Power Door Lock Switch Inspection]

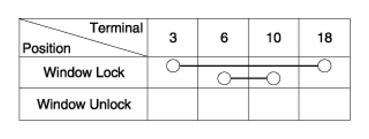

[Power Window Lock Switch Inspection]
