Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Wear gloves to protect hands from injury.

Information

When removing and installing the liftgate, an assistant is needed.

Remove the liftgate upper trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Remove the liftgate side trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Remove the liftgate trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Fig 1: Disconnecting Washer Nozzle Hose And High Mounted Stop Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver, lift the socket clips (A) up slightly on both ends of the liftgate lifter (B).

Fig 2: Locating Socket Clips On Both Ends Of Liftgate Lifter
Courtesy of HYUNDAI MOTOR AMERICA

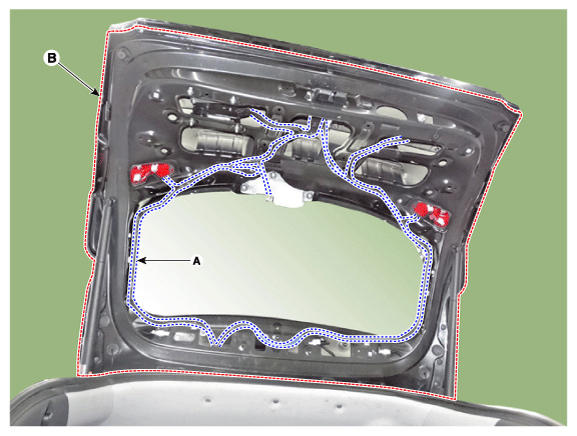

Disconnect the connectors and liftgate wiring harness (A).
After loosening the mounting bolts, then remove the liftgate assembly (B).
Tightening torque:

21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

Fig 3: Disconnecting Connectors And Liftgate Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

NOTE:

Make sure the liftgate locks/unlocks and opens/closes properly.
Adjust the liftgate alignment.
Make sure the connectors are connected in properly.
Replace any damaged clips (or pin-type retainers).
