Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Remove the driver airbag module by putting in a flat tool (Ø5 mm) into the guide hole and then press the fixed wire.

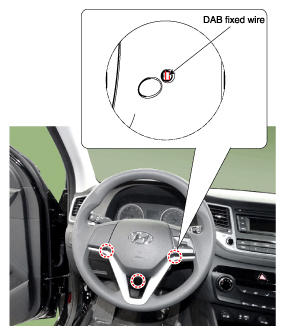

Fig 1: Removing Driver Airbag Module
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the horn connector (B).

Fig 2: Disconnecting Horn Connector
Courtesy of HYUNDAI MOTOR AMERICA
Release the connector locking pin, then disconnect the driver airbag module connector (A).

Fig 3: Disconnecting Driver Airbag Module Connector
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
Remove the steering wheel and steering wheel column shroud (A).
(Refer to Steering System - "STEERING WHEEL " and "MOTOR DRIVEN POWER STEERING ")

Fig 4: Removing Steering Wheel And Steering Wheel Column Shroud
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the clock spring (A) and horn connector (B), then remove the clock spring.

Fig 5: Disconnecting Clock Spring And Horn Connector

Courtesy of HYUNDAI MOTOR AMERICA
