Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

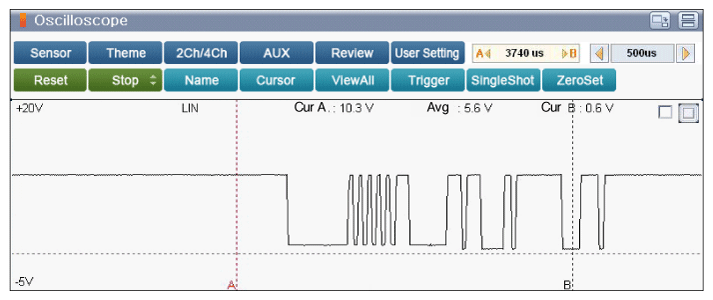

Fig 1: Screen Display - LIN Signal Waveform When Recognize Obstacles
G12046283Courtesy of HYUNDAI MOTOR AMERICA
