System Initialization

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

System initialization is needed to recognize the closing position of the liftgate to power liftgate module.

The initialization process after battery power reset, system initialization is needed to recognize the maximum opening and closing tailgate position exactly.

The power liftgate operates normally after system initialization is completed.

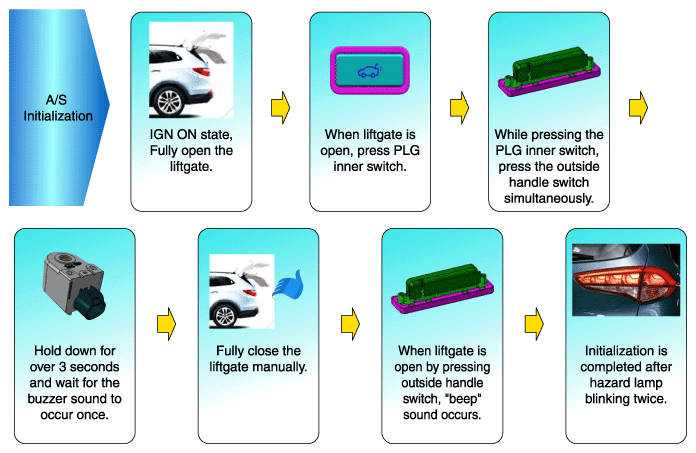

Fig 1: A/S Initialization Process Chart
G12043023Courtesy of HYUNDAI MOTOR AMERICA
