Accelerator Position Sensor (APS): Specifications: Specifications

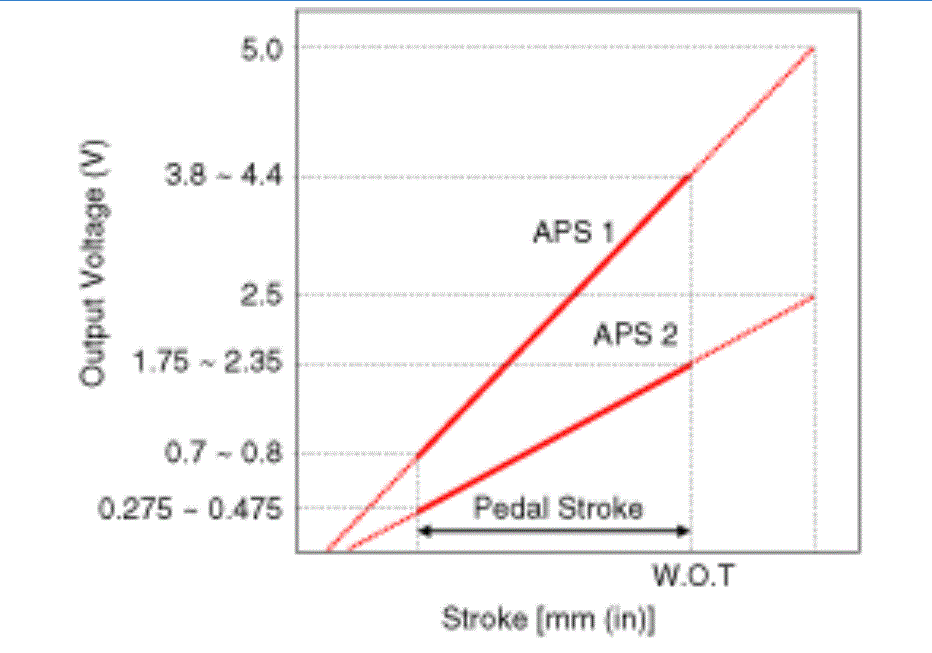

ACCELERATOR POSITION SENSOR (APS) SPECIFICATIONS
| Accelerator Position |
Output Voltage (V) |
| APS1 |
APS2 |
| C.T |
0.7 - 0.8 |
0.275 - 0.475 |
| W.O.T |
3.8 - 4.4 |
1.75 - 2.35 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
