Monitor GDS Data: Notes

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".

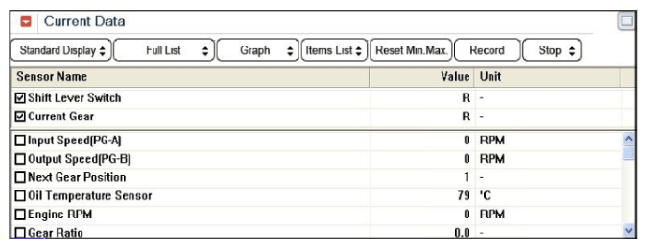

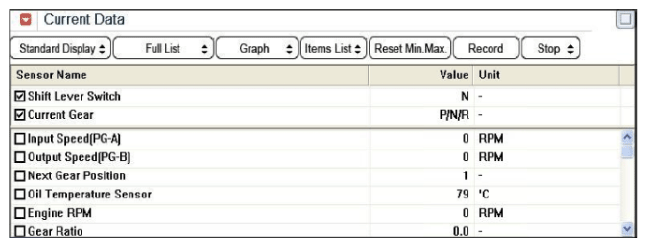

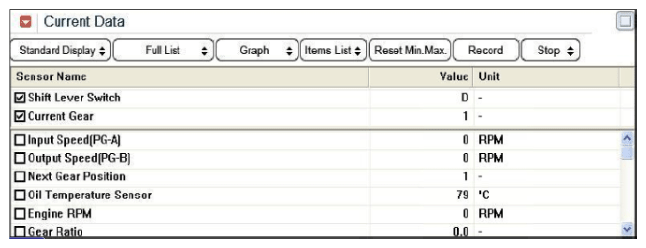

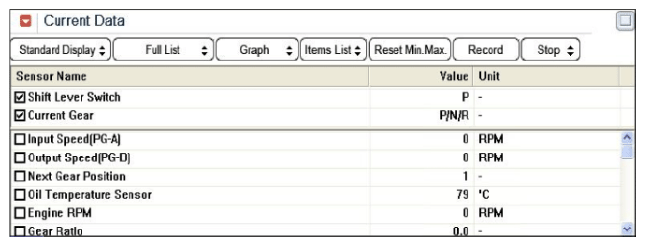

3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
4. Change a shift lever from P-range to D-range.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

5. Is the Inhibitor switch value changed in specification?

YES

• P070600 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. so Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

NO

• Go to "Shift cable alignment Inspection " procedure.
