Repair Procedures: Disassembly

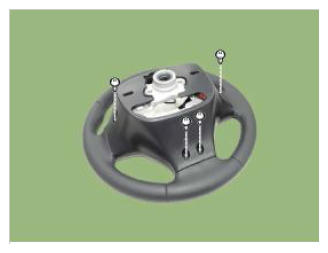

- Loosen the screw and then remove the lower cover.

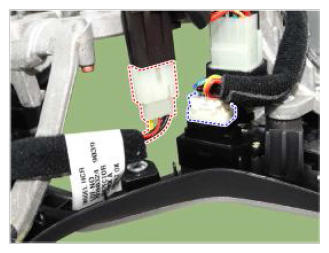

- Disconnect the remote control switch connector.

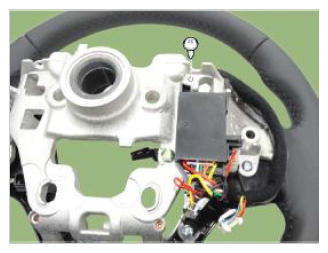

- Remove the control box by loosening the screw.

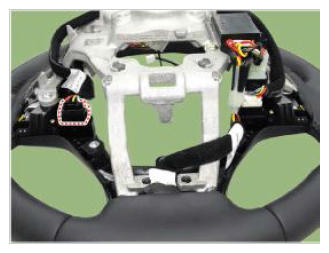

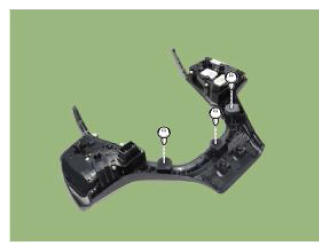

- Remove the remote control switch by loosening the screw.

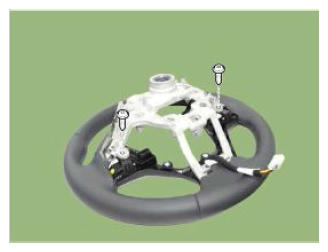

- Remove the upper cover by loosening the screw.
- To reassembly, reverse in the disassembly procedure.
