Components Location

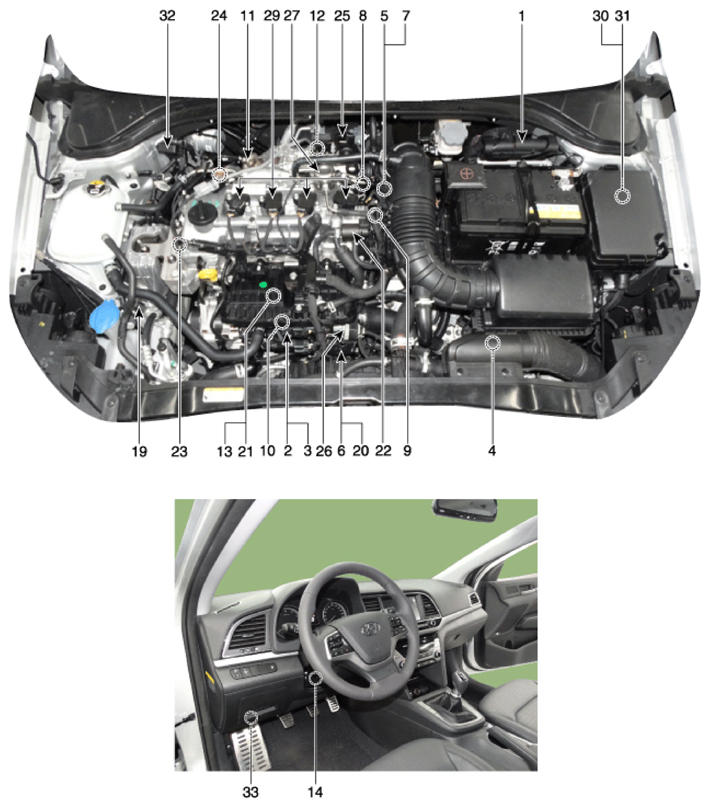

G12977029Courtesy of HYUNDAI MOTOR AMERICA

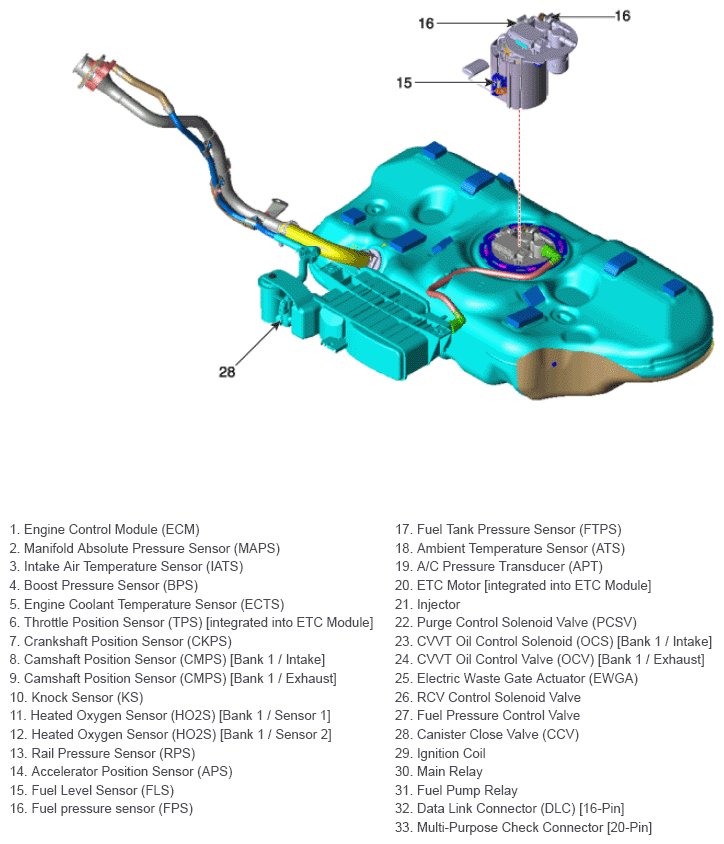

G12977030Courtesy of HYUNDAI MOTOR AMERICA

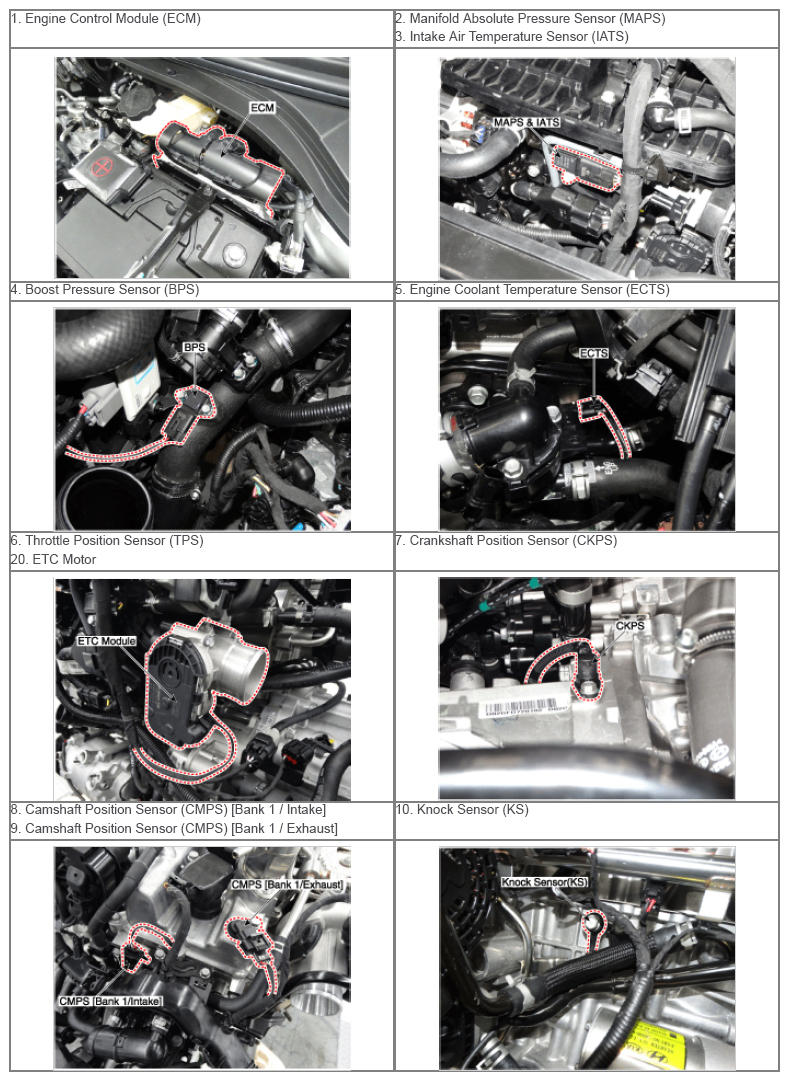

G12977031Courtesy of HYUNDAI MOTOR AMERICA

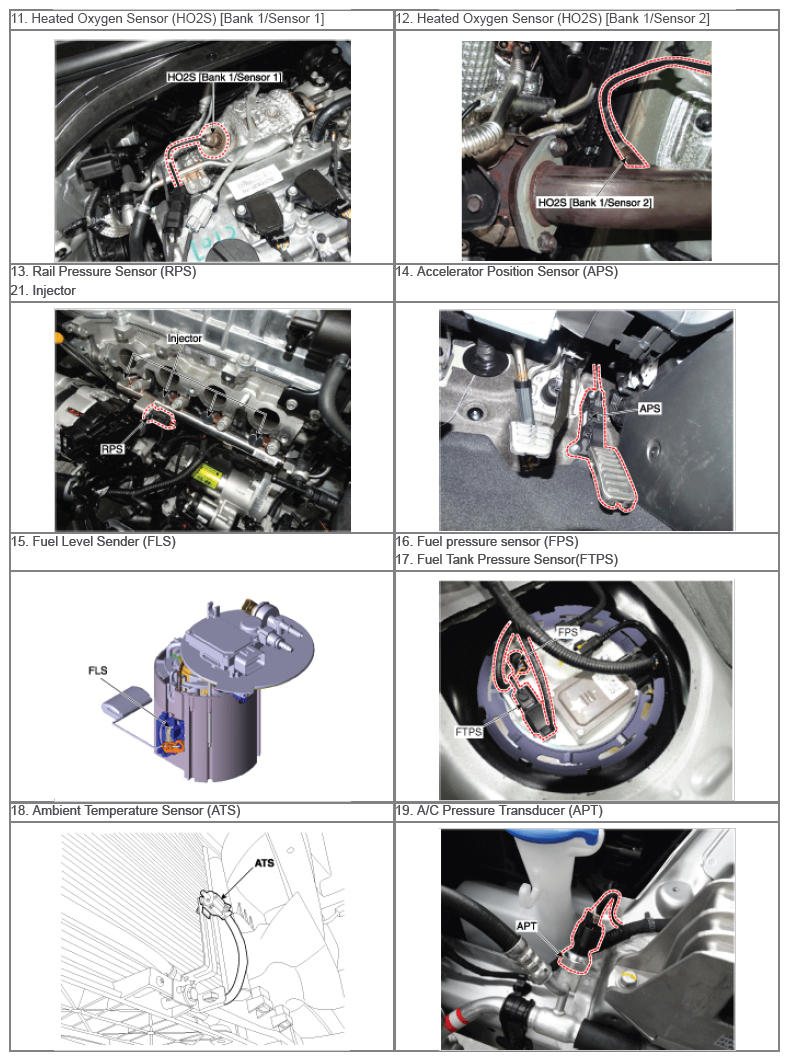

G12977032Courtesy of HYUNDAI MOTOR AMERICA

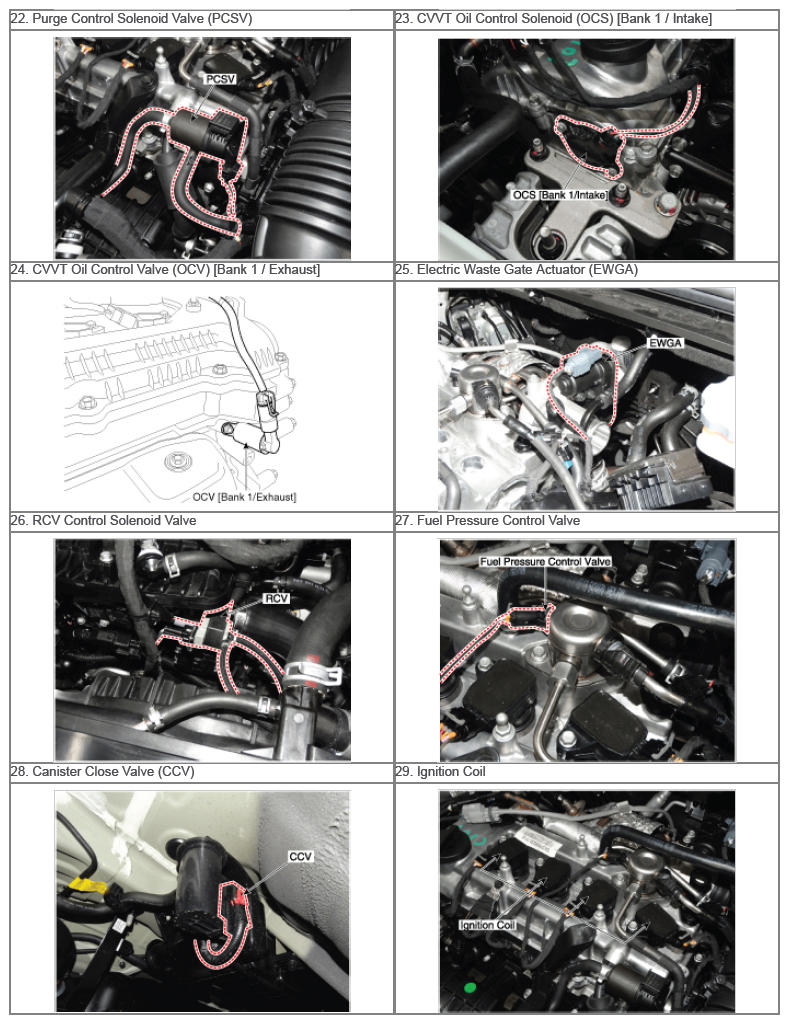

G12977033Courtesy of HYUNDAI MOTOR AMERICA

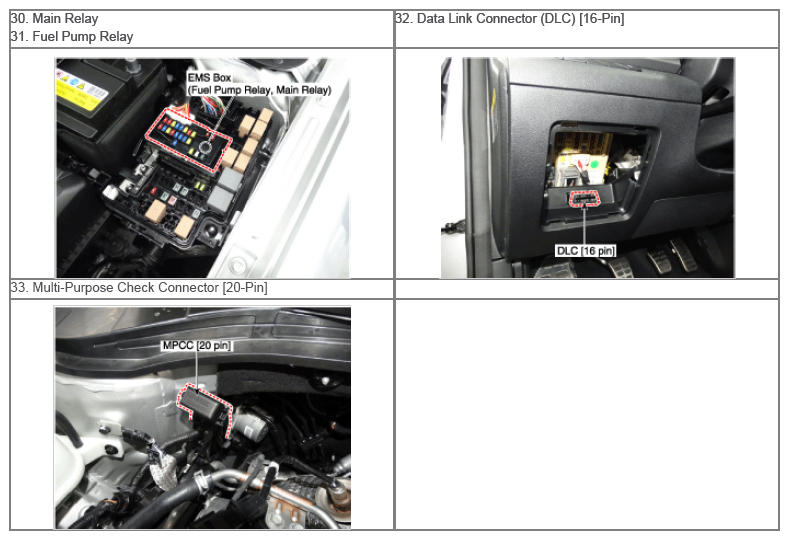

G12977034Courtesy of HYUNDAI MOTOR AMERICA
