FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

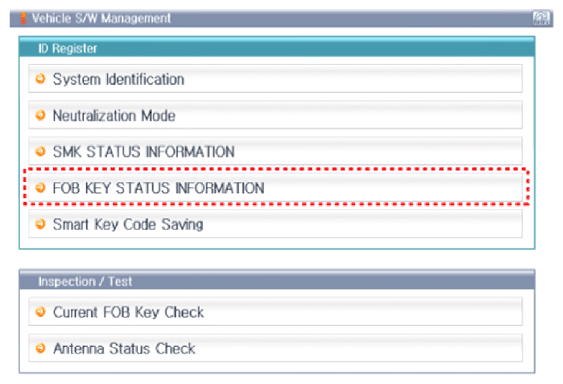

  2. After IG ON, select the "FOB KEY STATUS INFO".
    G13035611Courtesy of HYUNDAI MOTOR AMERICA

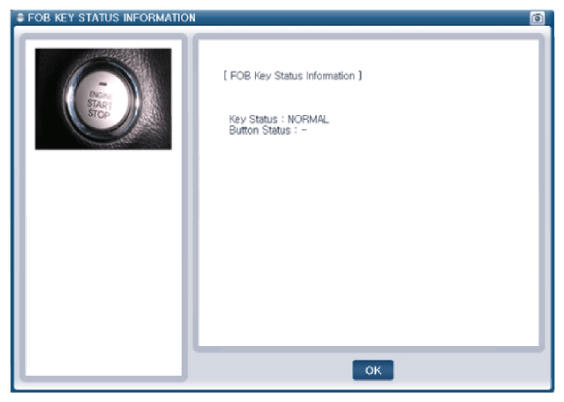

    G13035612Courtesy of HYUNDAI MOTOR AMERICA
