Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

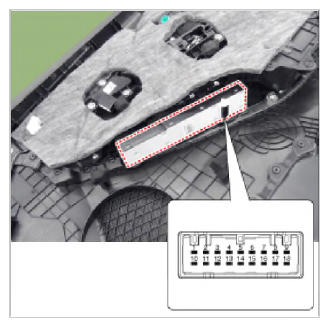

  3. Disconnect the power mirror switch connector from the door trim.
    G13035848Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as displayed below.

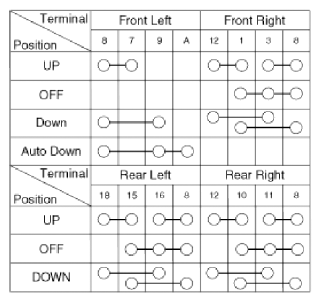

    [Power Window Switch Inspection]

    G13035849Courtesy of HYUNDAI MOTOR AMERICA

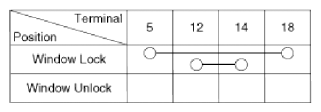

    [Power Window Lock Switch Inspection]

    G13035850Courtesy of HYUNDAI MOTOR AMERICA
