Heated Steering Wheel Control Module (Body Control Module (BCM))
- Disconnect the negative (-) battery terminal.
- Remove the Glove Box.
(Refer to Body - "GLOVE BOX HOUSING COVER ")
- Remove the Smart Key Unit.
(Refer to Body - "SMART KEY SYSTEM ")

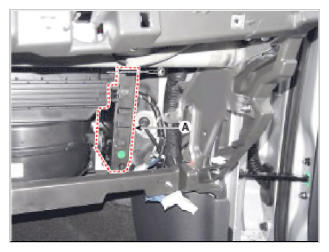

- Disconnect the body control module connectors (A).

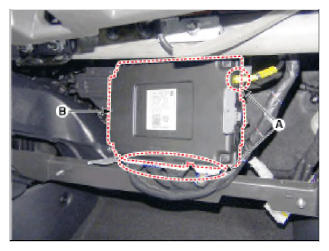

- Disconnect the body control module connectors (A) and then remove the BCM (B).
