Repair Procedures: Disassembly

  1. Loosen the screw.
    G13032250Courtesy of HYUNDAI MOTOR AMERICA

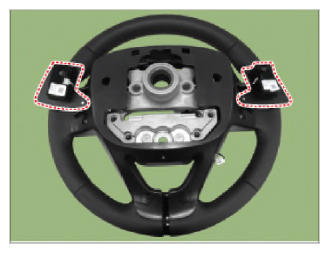

  2. Remove the paddle shift switch.
    G13032251Courtesy of HYUNDAI MOTOR AMERICA

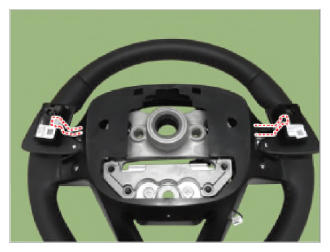

  3. Disconnect the connector and then remove the switch.
    G13032252Courtesy of HYUNDAI MOTOR AMERICA

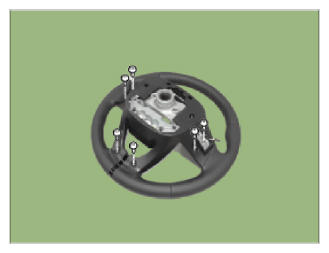

  4. Loosen the screw and then remove the lower cover.
    G13032253Courtesy of HYUNDAI MOTOR AMERICA

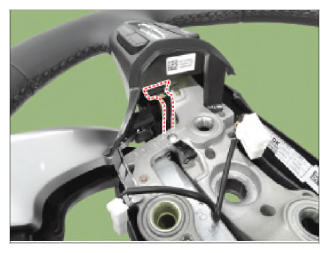

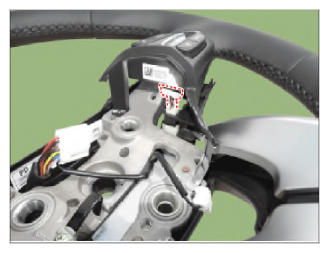

  5. Disconnect the remote control switch connector.
    G13032254Courtesy of HYUNDAI MOTOR AMERICA
    G13032255Courtesy of HYUNDAI MOTOR AMERICA

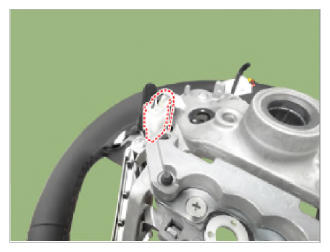

  6. Disconnect the heated steering wheel connector.
    G13032256Courtesy of HYUNDAI MOTOR AMERICA

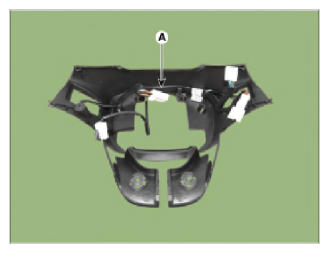

  7. Remove the wiring (A).
    G13032257Courtesy of HYUNDAI MOTOR AMERICA

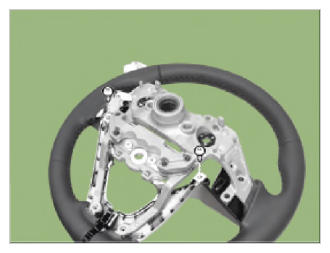

  8. Loosen the screw and then remove the remote control switch.
    G13032258Courtesy of HYUNDAI MOTOR AMERICA

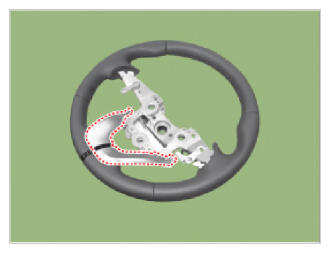

  9. Remove the steering upper cover.
    G13032259Courtesy of HYUNDAI MOTOR AMERICA
  10. To reassembly, reverse the disassembly procedure.
