Repair Procedures: Removal

  1. Oil-pressure characteristics backup (TCM exchange)

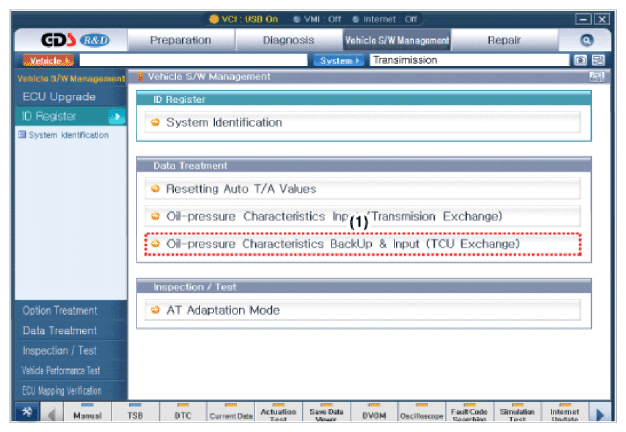

    G13037336Courtesy of HYUNDAI MOTOR AMERICA

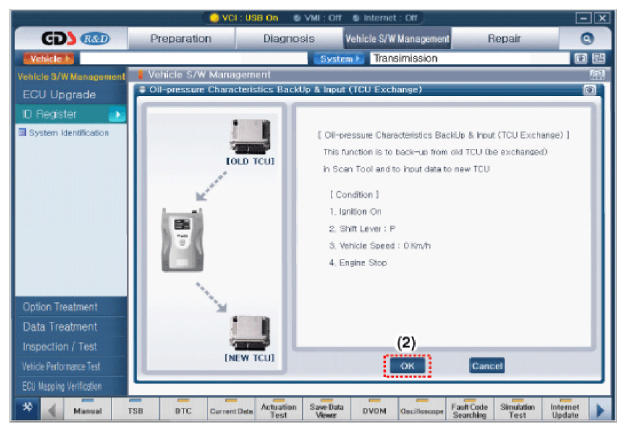

    G13037337Courtesy of HYUNDAI MOTOR AMERICA

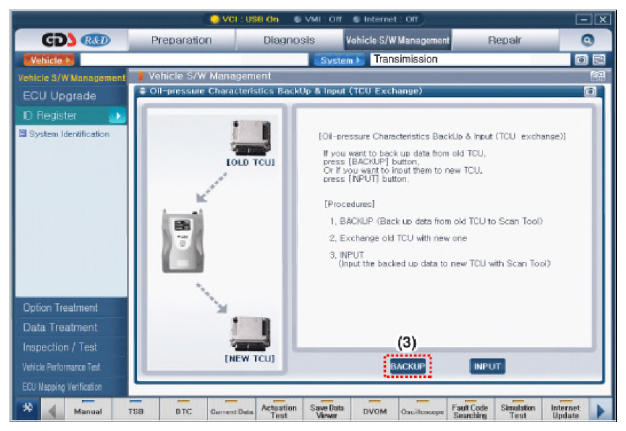

    G13037338Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF.
  3. Disconnect the negative (-) battery cable.
  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Disconnect the TCM connector (A).

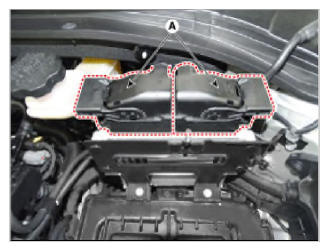

    G13037339Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the fixing clip (A) of wiring.
  7. Remove the TCM (B).

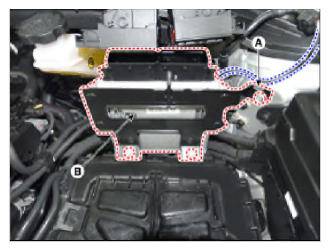

G13037340Courtesy of HYUNDAI MOTOR AMERICA
