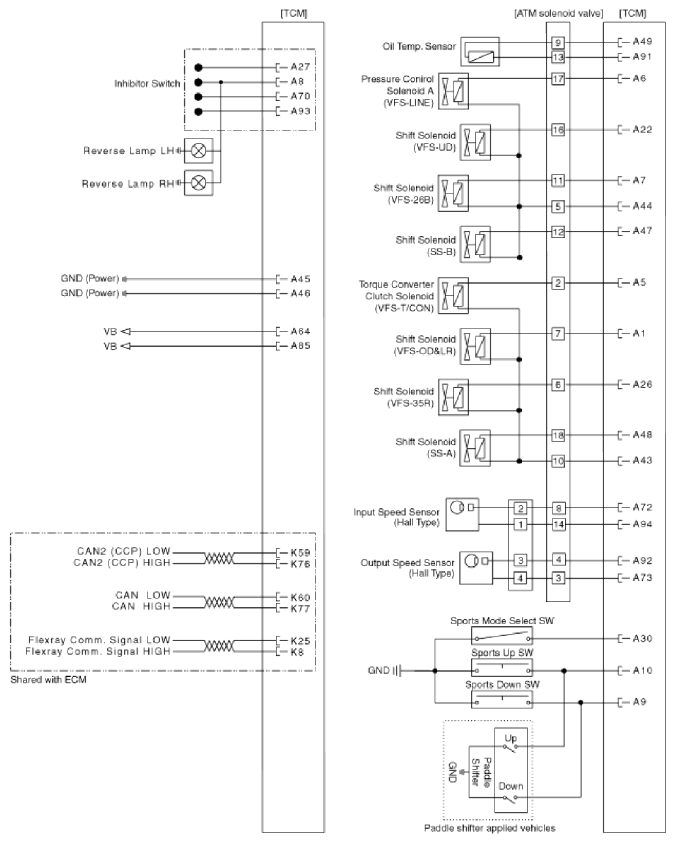

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

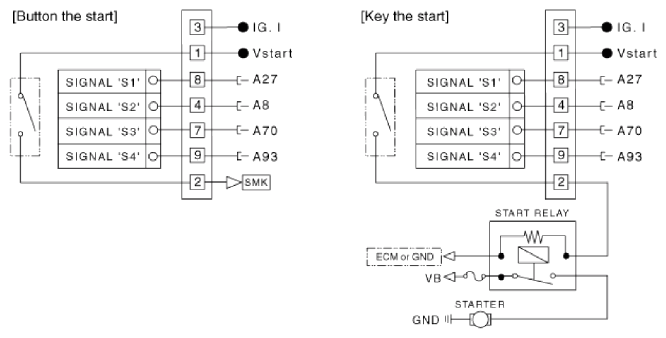

[Inhibitor switch]
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
