Components & Component Location: Components

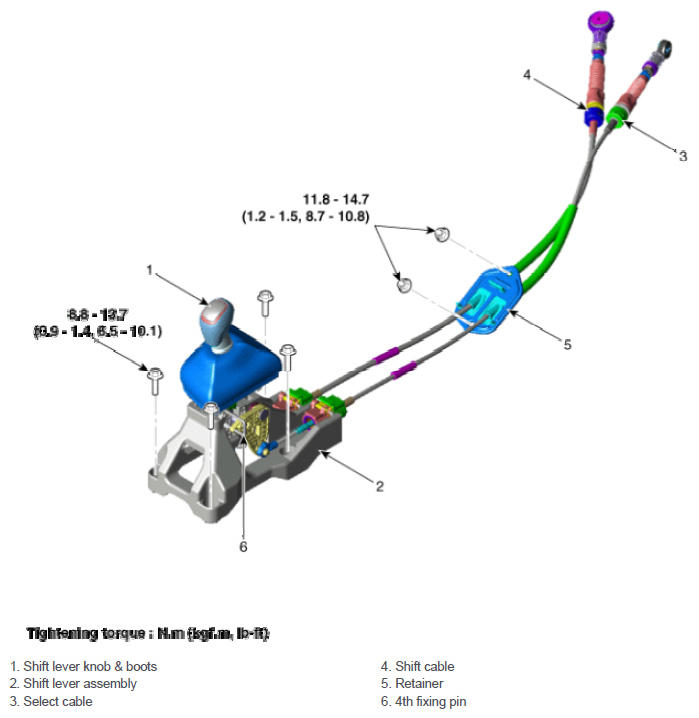

Fig 1: Control Cable Components Location With Torque Specification
G13015828Courtesy of HYUNDAI MOTOR AMERICA
