Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

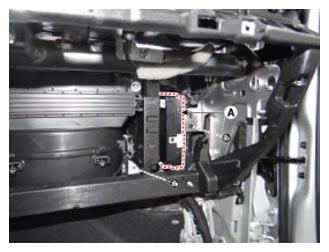

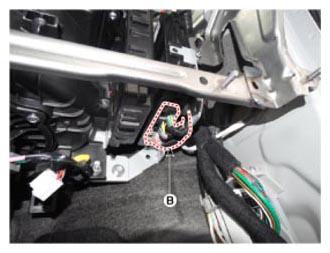

  3. Remove the smart key unit (A) after disconnecting the connectors (B) and loosening the bolt and nut.
    G12975035Courtesy of HYUNDAI MOTOR AMERICA
    G12975036Courtesy of HYUNDAI MOTOR AMERICA
