Repair Procedures: Removal

  1. Set shift lever to N position.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the engine control module (ECM).

    (Refer to Engine Control System - "ECM ")

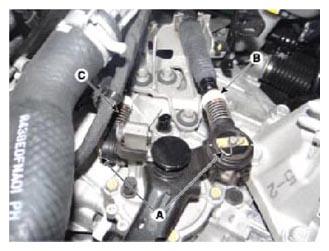

  5. Disconnect the shift cable (B) and the select cable (C) after removing the snap pin (A).
    G12981096Courtesy of HYUNDAI MOTOR AMERICA

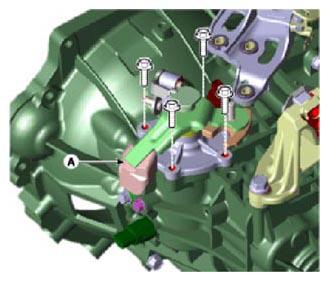

  6. Remove the control shaft assembly (A) after loosening the bolts.

    Tightening torque:

    19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

    G12981097Courtesy of HYUNDAI MOTOR AMERICA
