Components Location

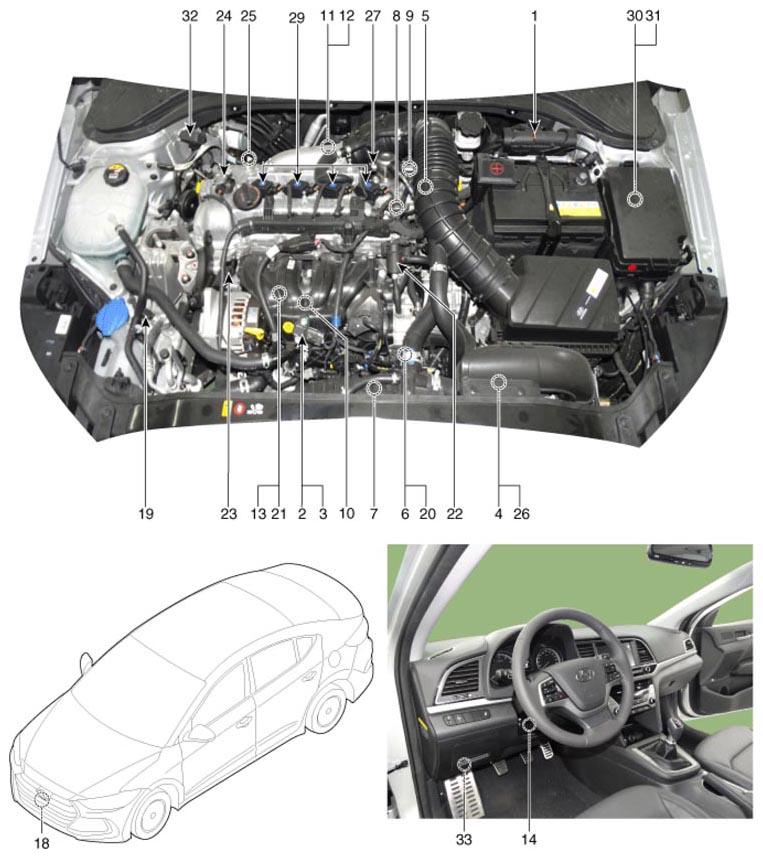

G12971815Courtesy of HYUNDAI MOTOR AMERICA

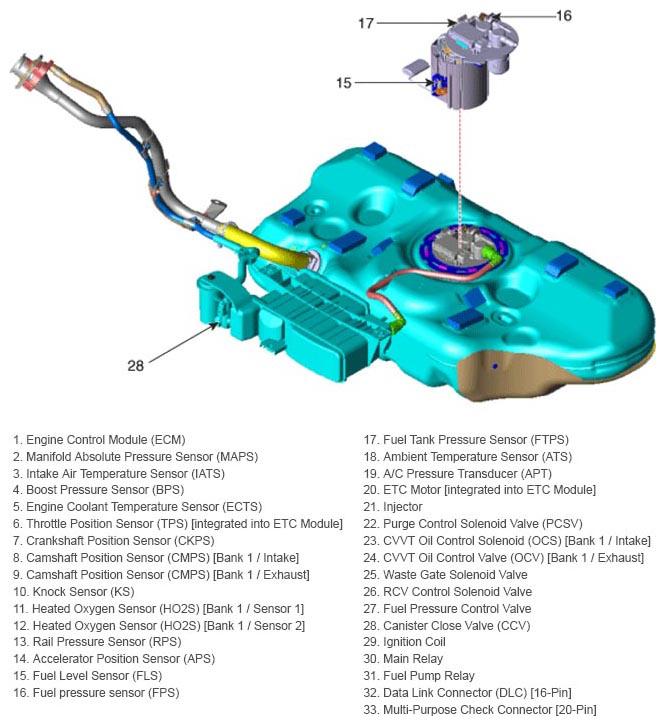

G12971816Courtesy of HYUNDAI MOTOR AMERICA

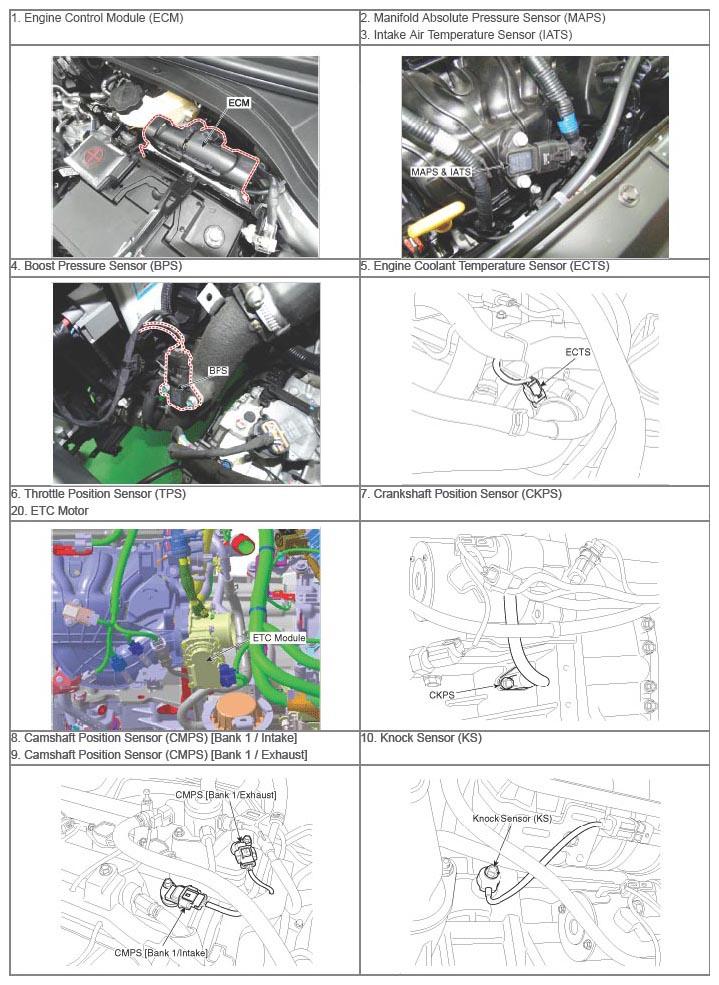

G12971817Courtesy of HYUNDAI MOTOR AMERICA

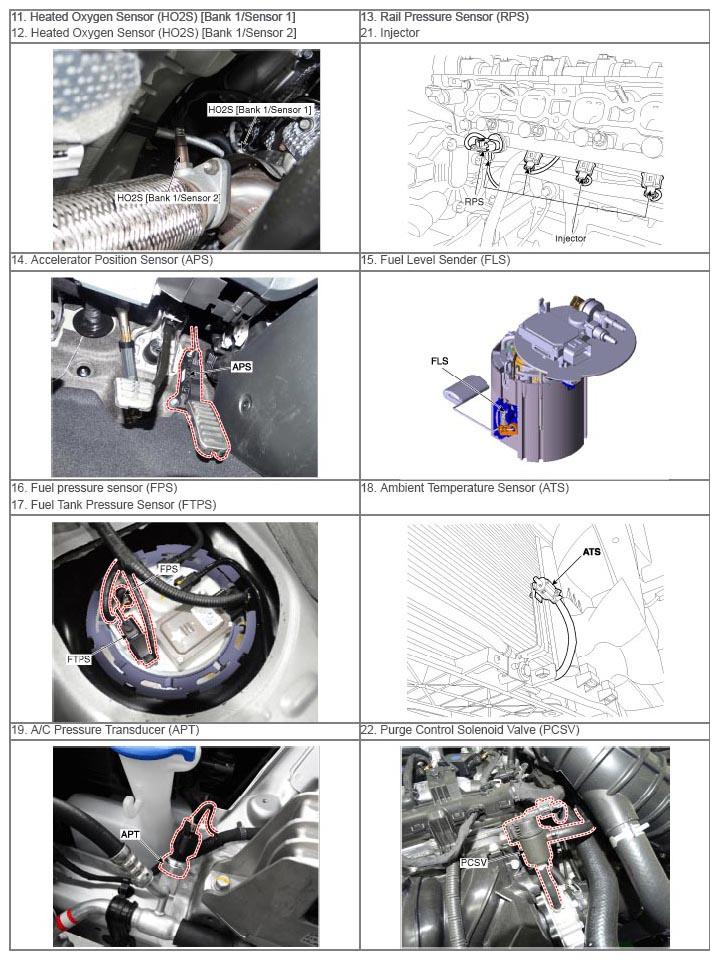

G12971818Courtesy of HYUNDAI MOTOR AMERICA

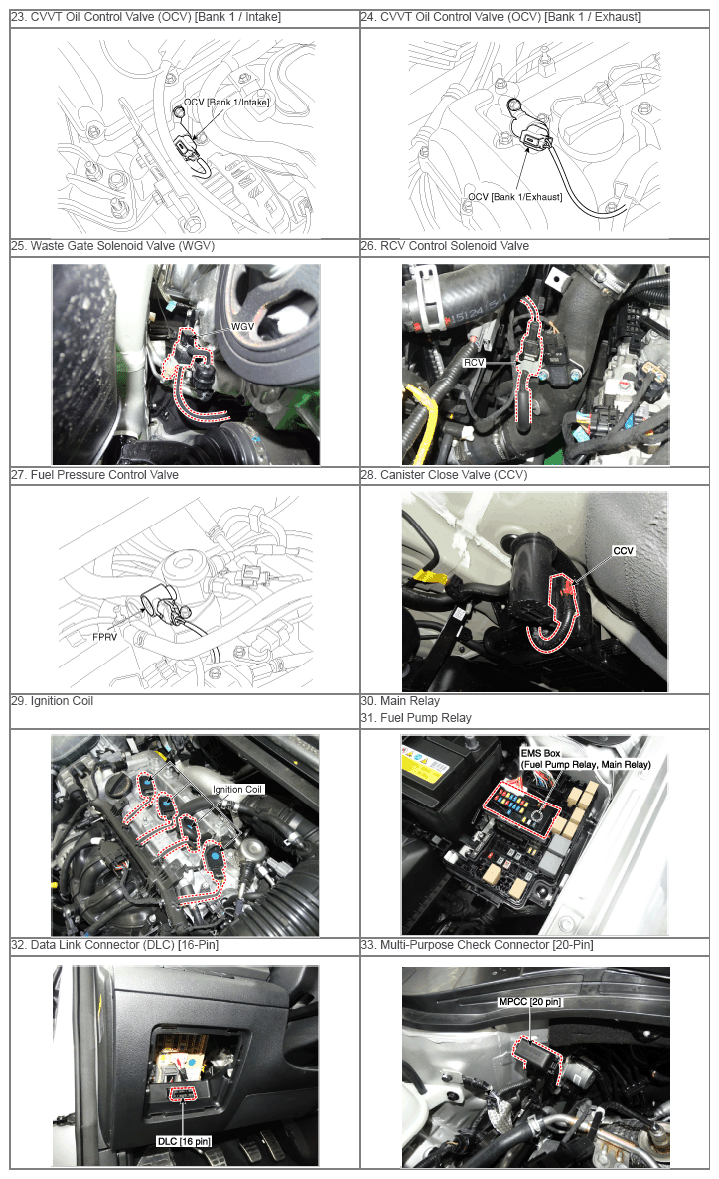

G12971819Courtesy of HYUNDAI MOTOR AMERICA
