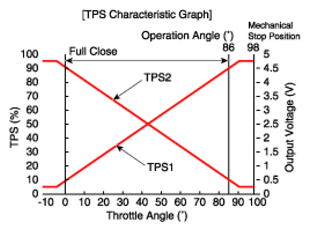

[Throttle Position Sensor (TPS)]
ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM SPECIFICATIONS
| Throttle Angle (°) |
Output Voltage (V) |
| TPS1 |
TPS2 |
| 0 |
0.50 |
4.50 |
| 10 |
0.96 |
4.05 |
| 20 |
1.41 |
3.59 |
| 30 |
1.87 |
3.14 |
| 40 |
232 |
2.68 |
| 50 |
2.78 |
223 |
| 60 |
3.23 |
1.77 |
| 70 |
3.69 |
1.32 |
| 80 |
4.14 |
0.86 |
| 90 |
4.60 |
0.41 |
| 98 |
4.65 |
0.35 |
| C.T (0) |
0.50 |
4.50 |
| W.O.T (86) |
4.41 |
0.59 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
