Repair Procedures: Installation
- Install the steering wheel remote control and cover after connecting the connector.
- Install the steering wheel and driver airbag module.
- Connect the negative (-) battery terminal.

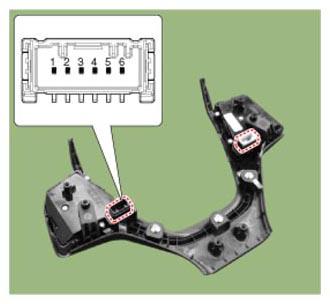

Switch Connector Terminal Resistance (± 5%) CANCEL 2 - 5 330 Ω SET (-) 2 - 5 550 Ω RES (+) 2 - 5 880 Ω CRUISE 2 - 5 1.44 kΩ
