Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

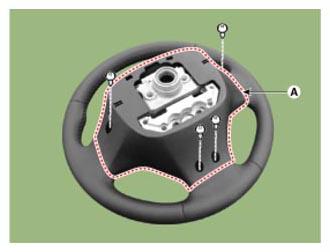

  3. Remove the steering back cover (A).
    G12971766Courtesy of HYUNDAI MOTOR AMERICA

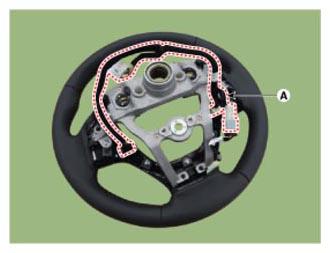

  4. Remove the steering remote control connector (A).
    G12971767Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering remote control after loosening the screws.
    G12971768Courtesy of HYUNDAI MOTOR AMERICA
