Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

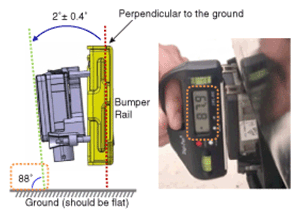

The vertical installation angle of the unit must be within 2°± 0.4°. (not 0 degree)

* Before installing the bumper onto the vehicle, measure the vertical angle of the unit with a protractor as shown.

Courtesy of HYUNDAI MOTOR AMERICA

Align the smart cruise control sensor.
(Refer to Engine Electrical System - "SMART CRUISE CONTROL (SCC) ALIGNMENT ")
Install the bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
