Repair Procedures: Removal

  1. Remove the bumper.

    (Refer to Body - "FRONT BUMPER ")

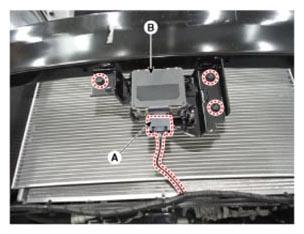

  2. Disconnect the smart cruise control unit connector (A).
  3. Remove the smart cruise control unit assembly (B) from vehicle after loosening mounting bolts.
    G12971751Courtesy of HYUNDAI MOTOR AMERICA
    G12971752Courtesy of HYUNDAI MOTOR AMERICA
