With Paddle shift

  1. Remove the paddle shift switch.
    G12973031Courtesy of HYUNDAI MOTOR AMERICA

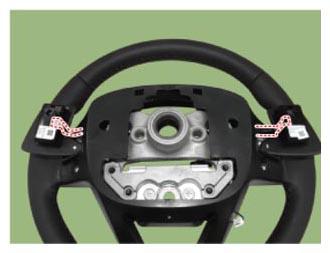

  2. Disconnect the connector and then remove the switch.
    G12973032Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the screw and then remove the lower cover.
    G12973033Courtesy of HYUNDAI MOTOR AMERICA

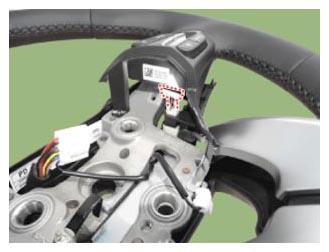

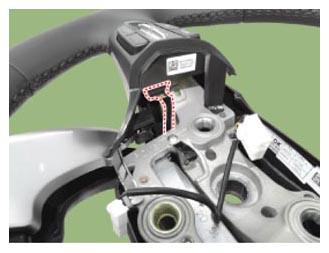

  4. Disconnect the remote control switch connector.
    G12973034Courtesy of HYUNDAI MOTOR AMERICA
    G12973035Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the screw.
    G12973036Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the screw and then remove the remote control switch.
    G12973037Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the steering wheel upper cover.
    G12973038Courtesy of HYUNDAI MOTOR AMERICA
