Repair Procedures: Installation

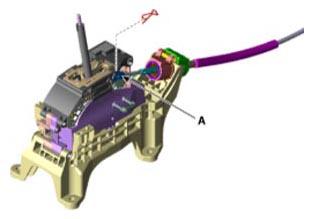

- Install the shift cable retainer (A).
Tightening Torque:
11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)
NOTE:- Install the cable after placing the shift lever and the Manual Control Lever in the N position.

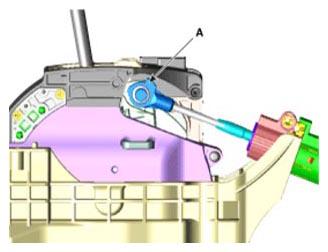

- Install the shift cable (A) in the shifter lever.CAUTION:

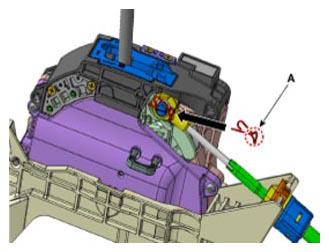

- Lug (A) must assemble upward.
- Bending area (A) must assemble the front.

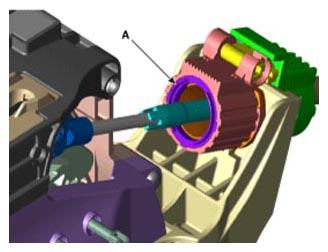

- Push in the cable socket at bracket of AT lever and must confirm that assembly sound and portion (A) of sock protrude from cap of socket.
- Portion (A) located inside the cap before assembled.
- Portion (A) must protrude after socket assembled.
- Lug (A) must assemble upward.

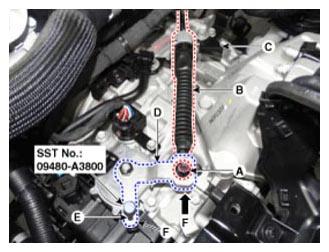

- Install the shift cable (B) in the cable bracket (C).
- Align the hole (E) in the Manual Control Lever with the "N" position hole (F) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No: 09480-A3800).
- Lightly tighten the nut (A) after connected the shift cable (B) in the Manual Control Lever (D).
- Push shift cable (B) lightly to "F" direction displayed to eliminate free play of shift cable.
- Tighten the nut (A) to the specified torque.
Tightening Torque:
9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
- Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
- Install the airbag module.
(Refer to Restraint - "AIRBAG MODULE ")
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")
- Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
