Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Pull the knob (A) in the direction of "F" and remove the knob.
- Disconnect the connector (B) from the shift lever.

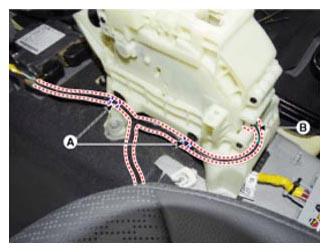

- Disconnect the fixing clip (A) of wiring.
- Disconnect the shift cable.

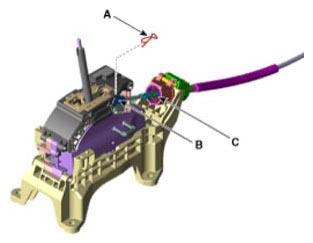

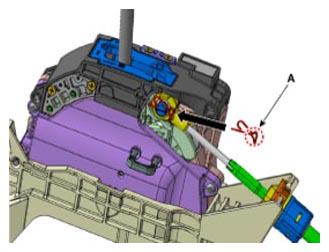

- Remove the snap pin (A).
- Disconnect the cable eye end (B) from the shift lever.
- Disconnect the cable socket (C) from the shift lever.

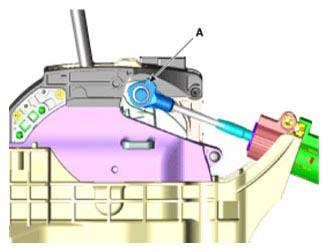

CAUTION:- Lug (A) must assemble upward.
- Bending area (A) must assemble the front.

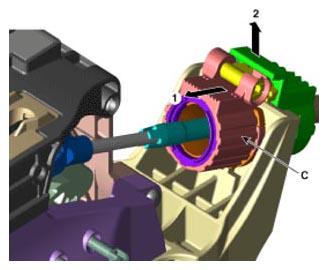

- Push in the cable socket at bracket of AT lever and must confirm that assembly sound and portion (A) of sock protrude from cap of socket.

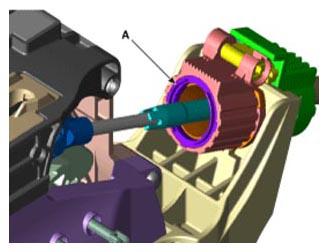

- Portion (A) located inside the cap before assembled.
- Portion (A) must protrude after socket assembled.

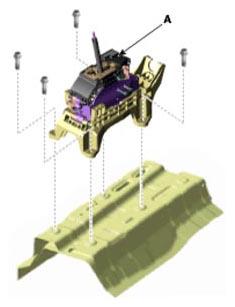

- Remove the bolts and then shift lever assembly (A).
Tightening Torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
