Body Control Module

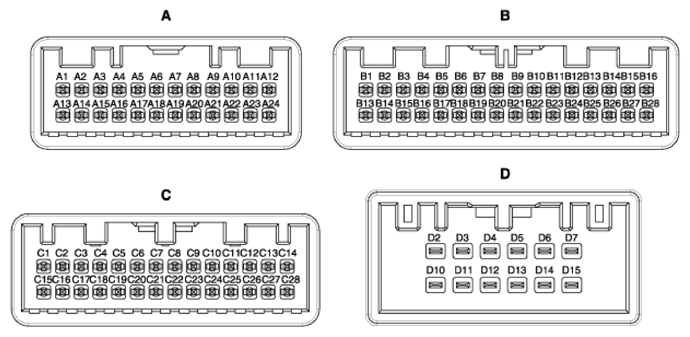

G12727874Courtesy of HYUNDAI MOTOR AMERICA
Pin Function
D3 Ignition 2_Heated handle power
D4 Ignition 2_Heated handle power_2
D5 Heated handle
C22 NTC (-)
C9 NTC (+)
C4 Heated handle switch
