Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

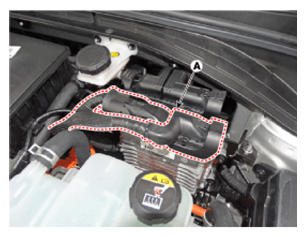

  2. Disconnect the TCM connector (A).
    G12727445Courtesy of HYUNDAI MOTOR AMERICA

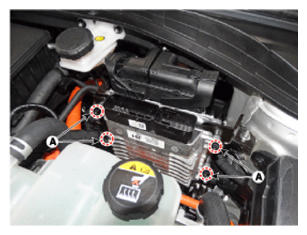

  3. Remove the TCM from the vehicle after loosen the bolts (A-4ea).
G12727446Courtesy of HYUNDAI MOTOR AMERICA
