Components And Components Location: Components

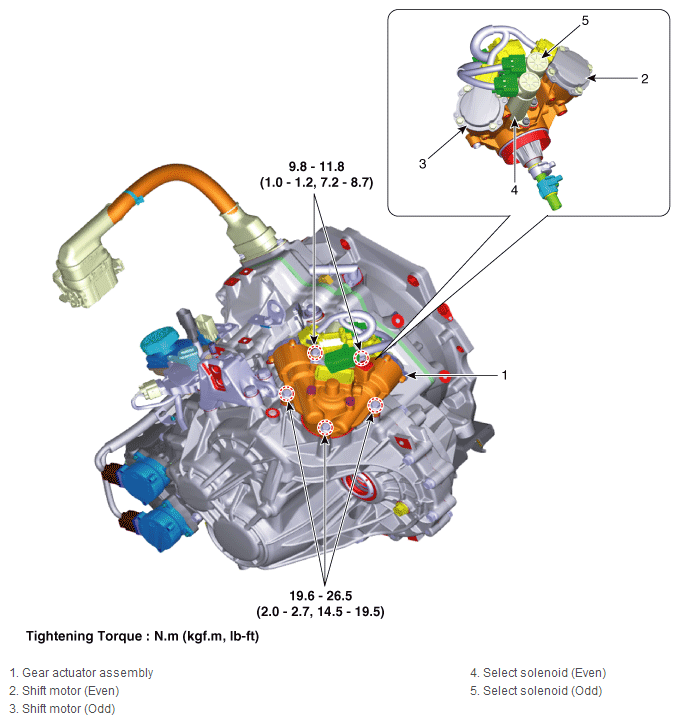

Fig 1: Gear Actuator Assembly Components With Torque Specification
G12727480Courtesy of HYUNDAI MOTOR AMERICA
