Components And Components Location: Components

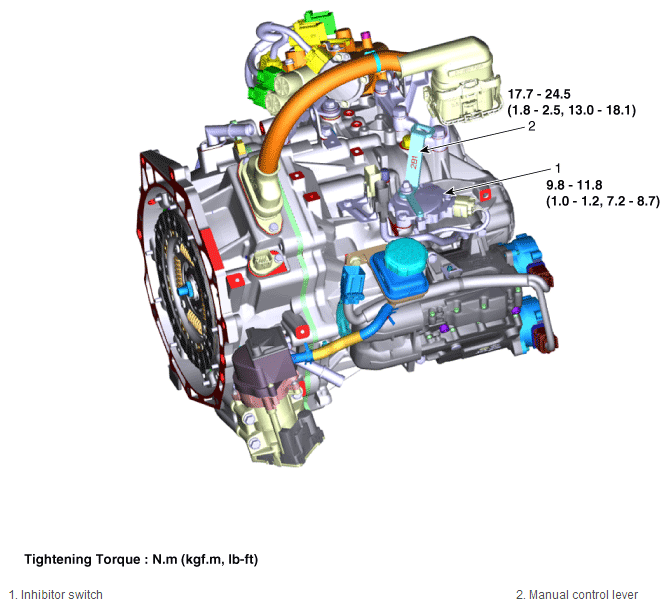

Fig 1: Inhibitor Switch Components With Torque Specification
G12727501Courtesy of HYUNDAI MOTOR AMERICA
