Kona Limited, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

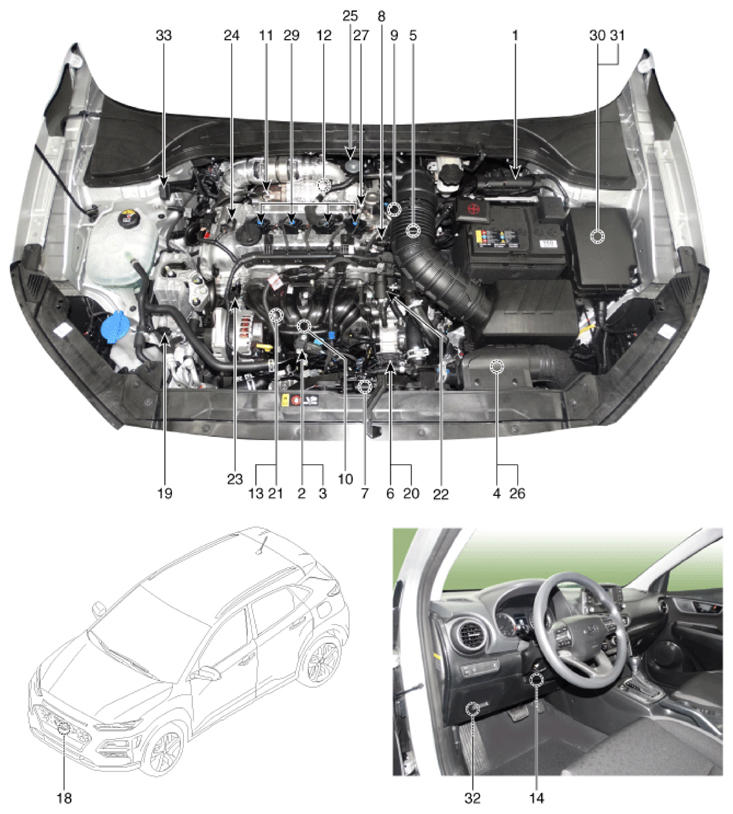

Fig 1: Engine Control System Components (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

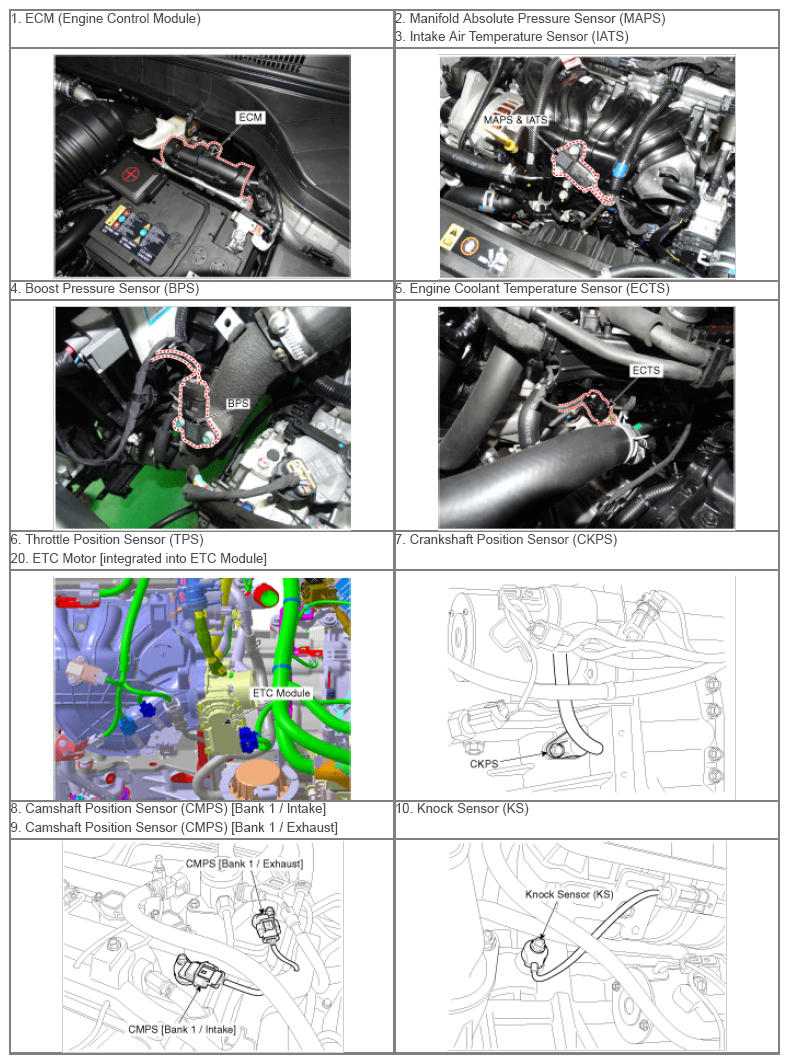

Fig 2: Engine Control System Components (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

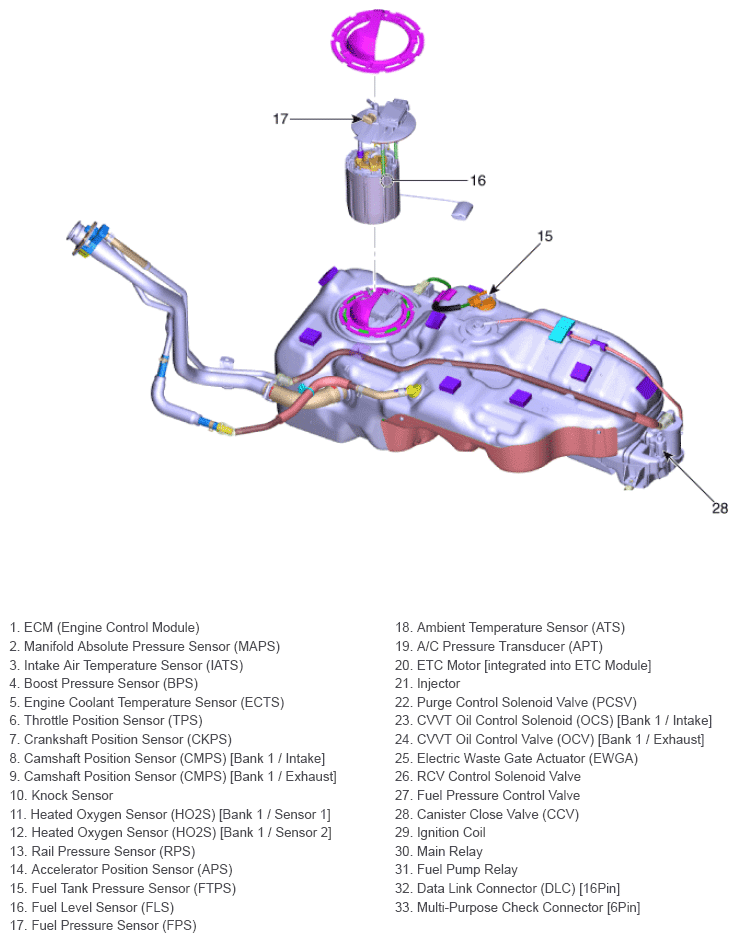

Fig 3: Engine Control System Components (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

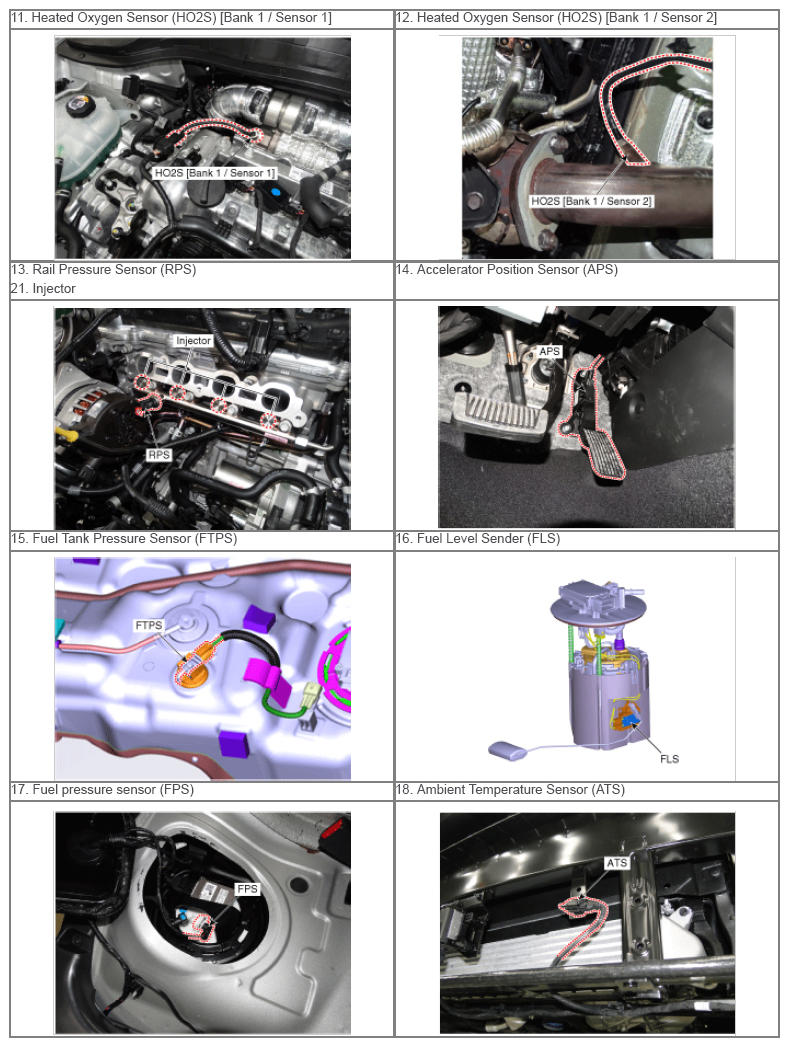

Fig 4: Engine Control System Components (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

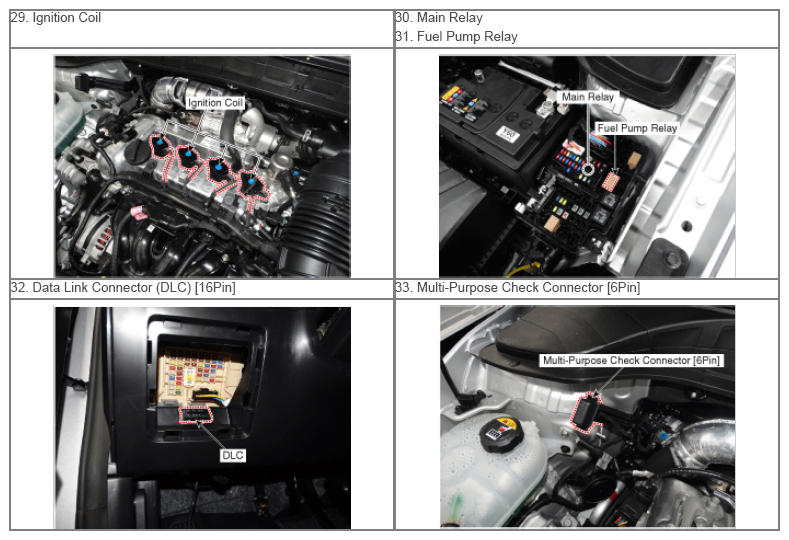

Fig 5: Engine Control System Components (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

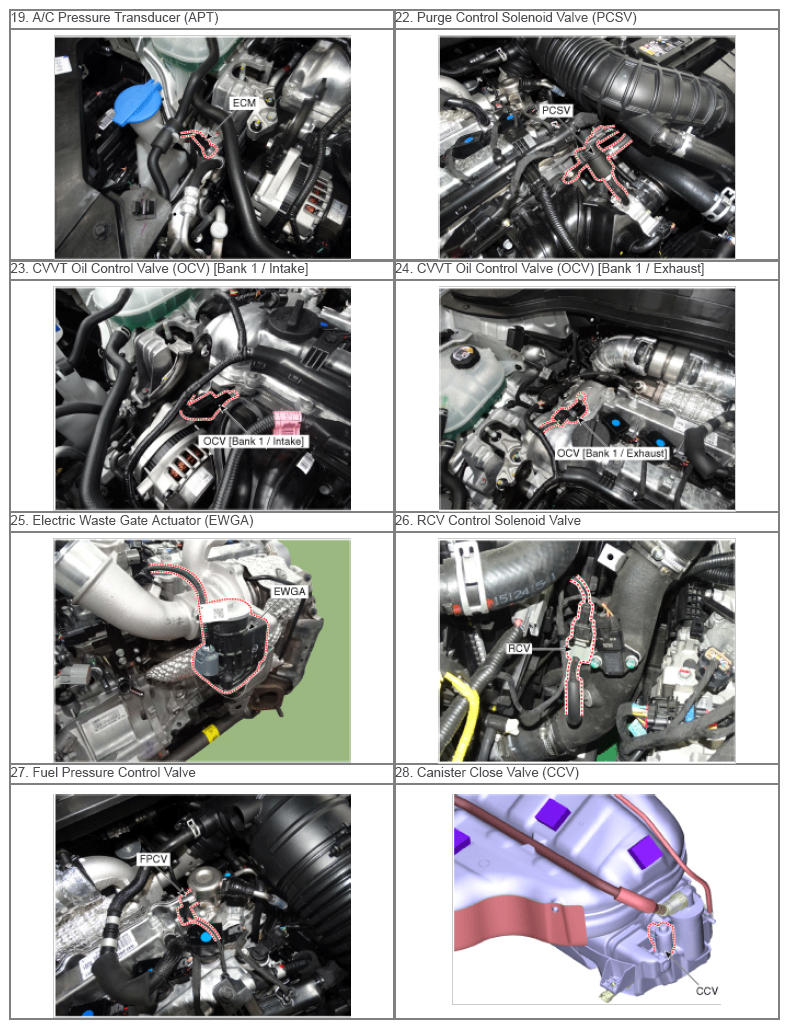

Fig 6: Engine Control System Components (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
